TECTRA Eco MAX

waterproof cases

High quality photographic, filming or measuring equipment, due to its high value and susceptibility to damage, requires extremely safe conditions of transportation.

Cases of plastic (polypropylene) with a silicon gasket and decompression valve.

Cases perfectly protect equipment stored in them from moisture and dust. Meet the requirements of IP67.

Very durable, perfectly protect stored equipment. Recommended for photographic equipment, measurement electronics and all that the transport needs special protection.

TECTRA Eco MAX products are very high quality and competitive at the same time priced alternative to the very expensive products from other manufacturers.

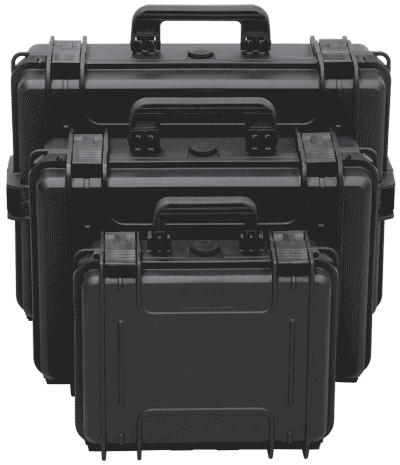

Table of dimensions available models TECTRA Eco MAX below.

TECTRA Eco dimm

TECTRA Eco MAX cases are fitted with silicone rubber placed in the lid, ensuring a perfect seal and protection against moisture and dust.

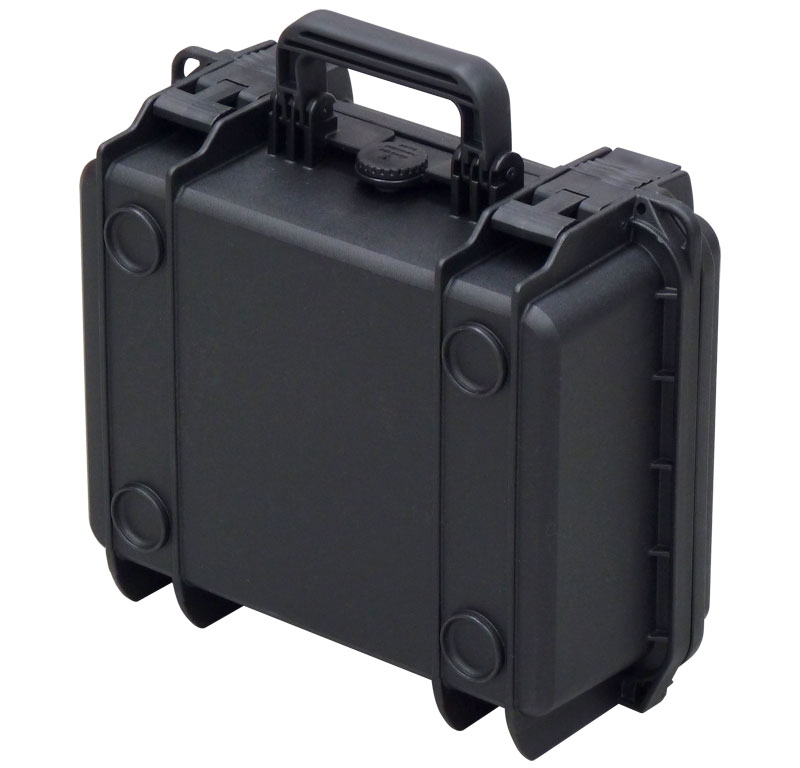

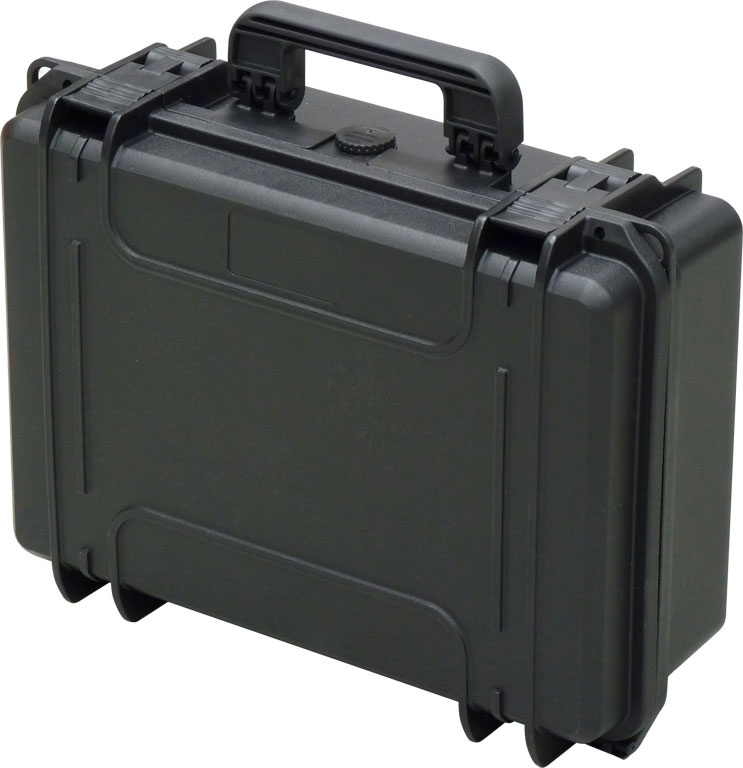

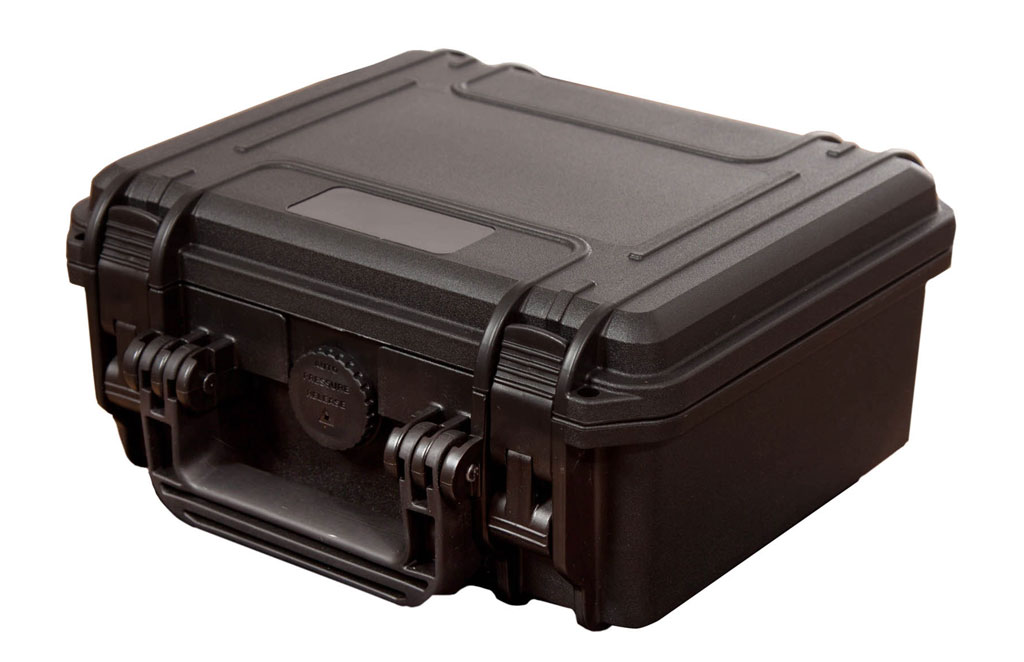

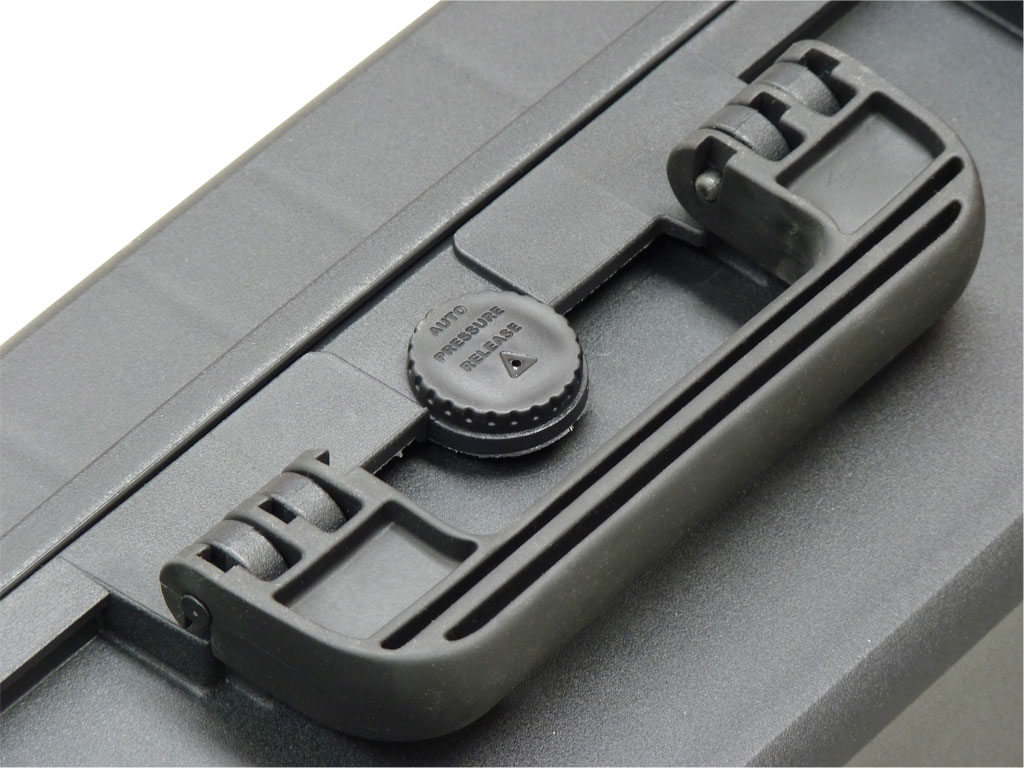

Every TECTRA Eco MAX case has a built-in decompression valve. Aligns the pressure inside the luggage transported under varying conditions of pressure (eg air transport).

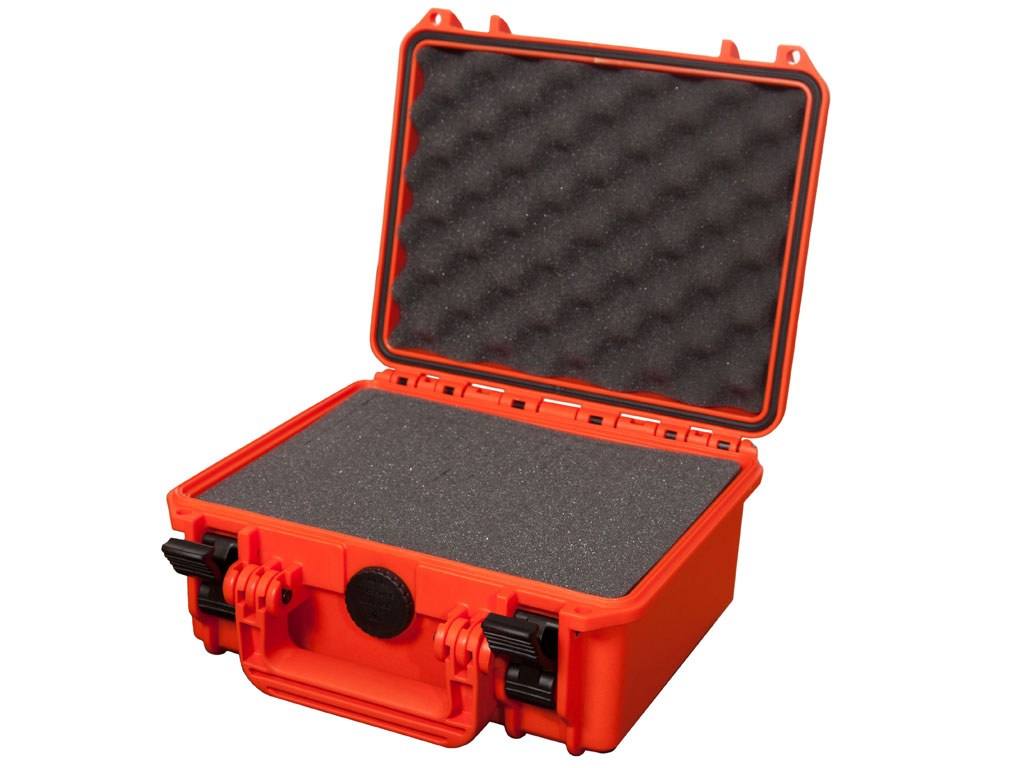

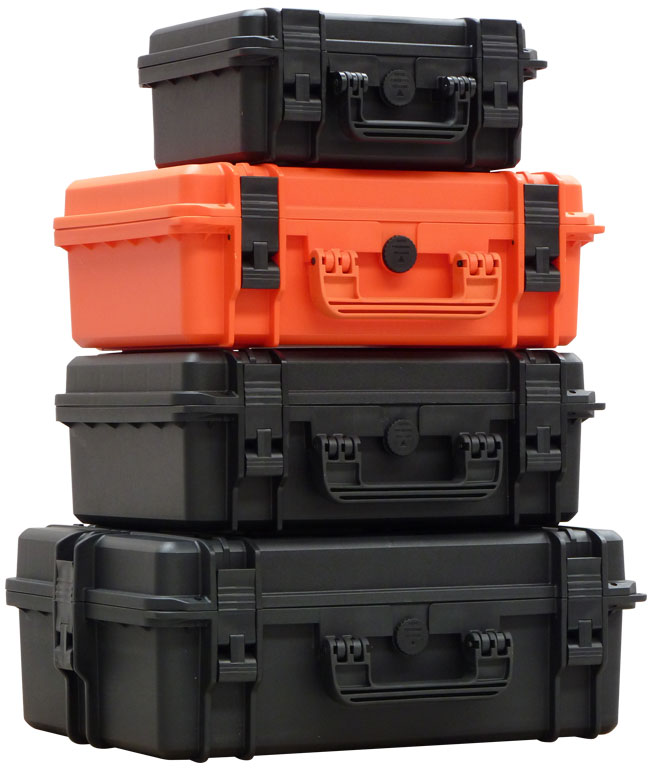

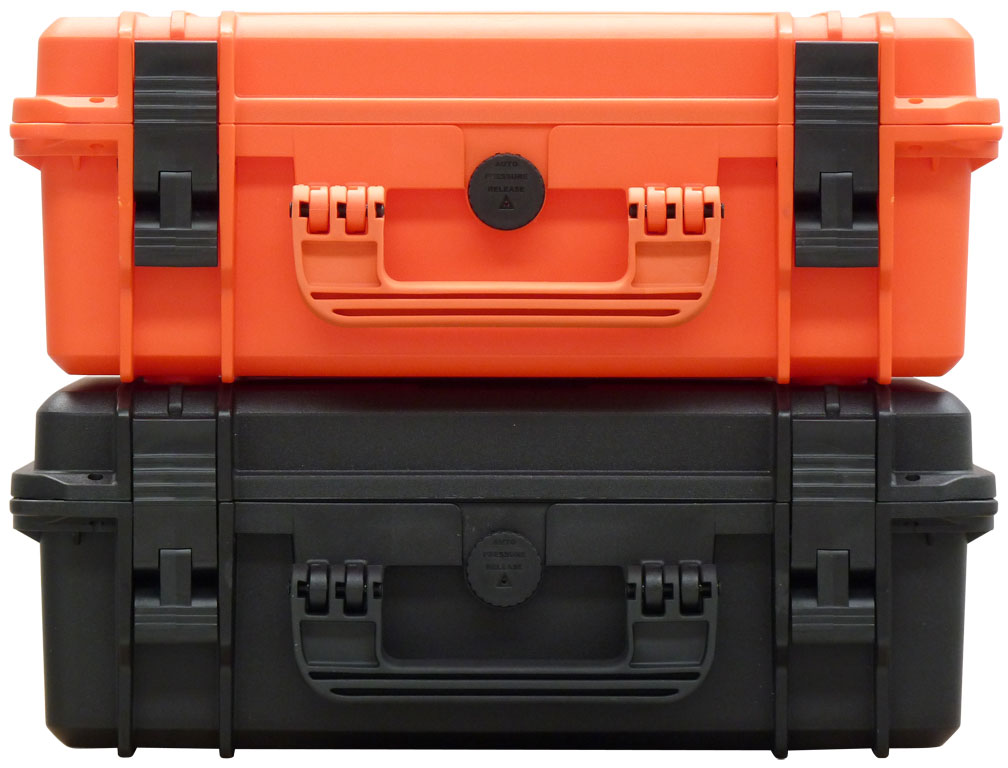

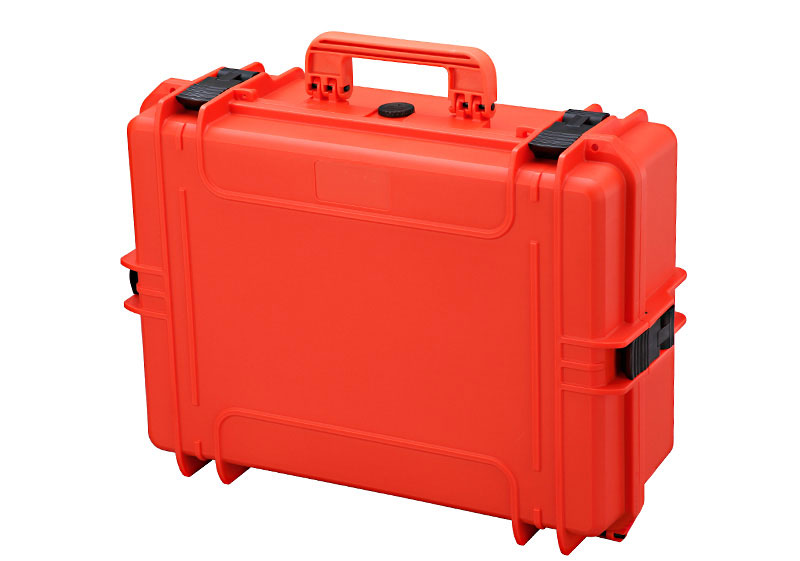

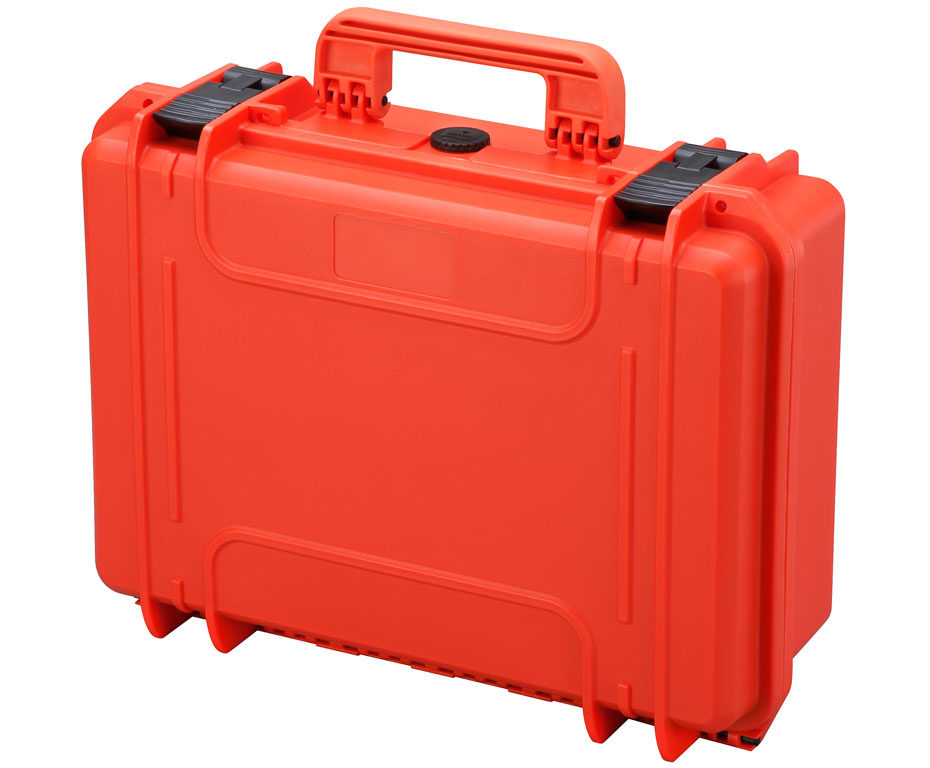

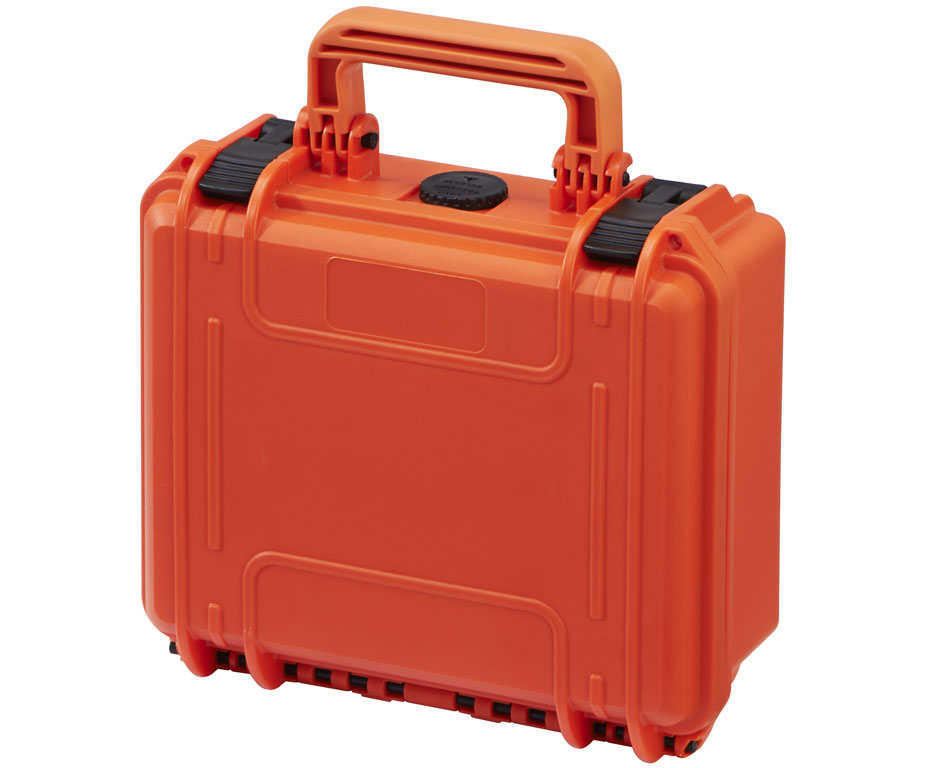

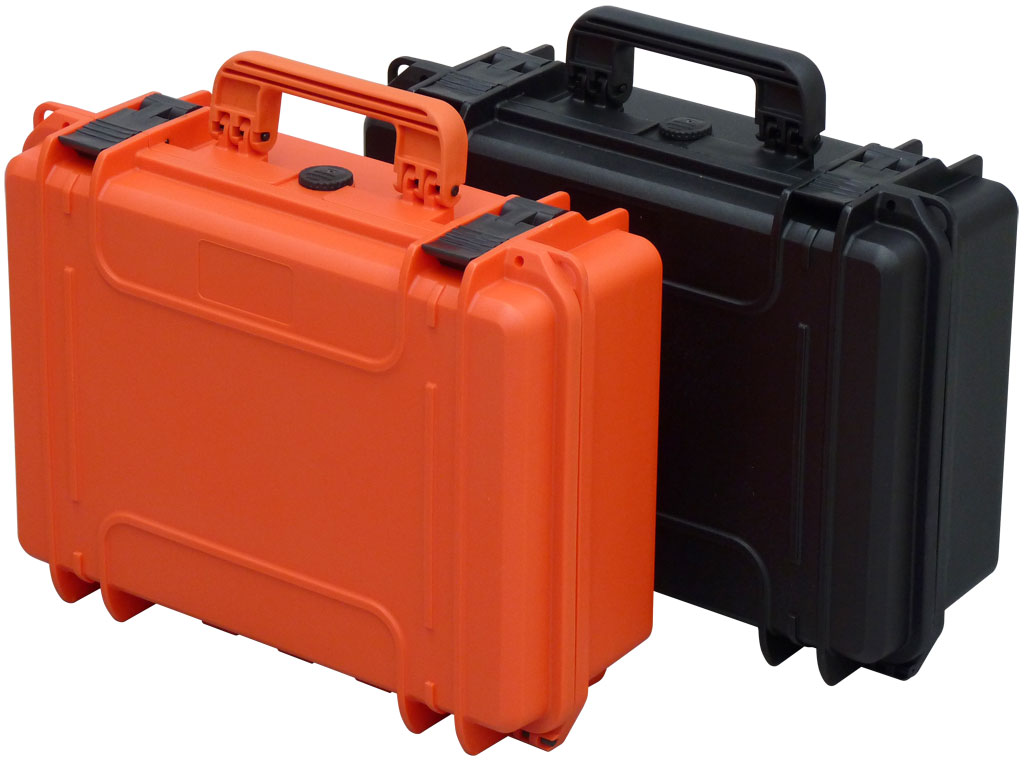

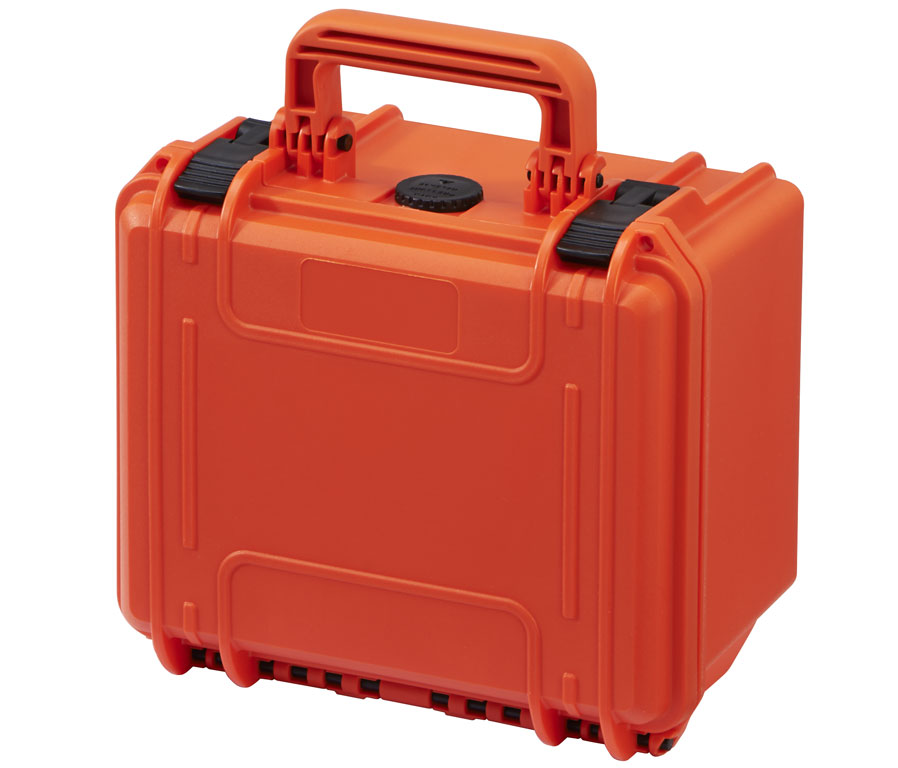

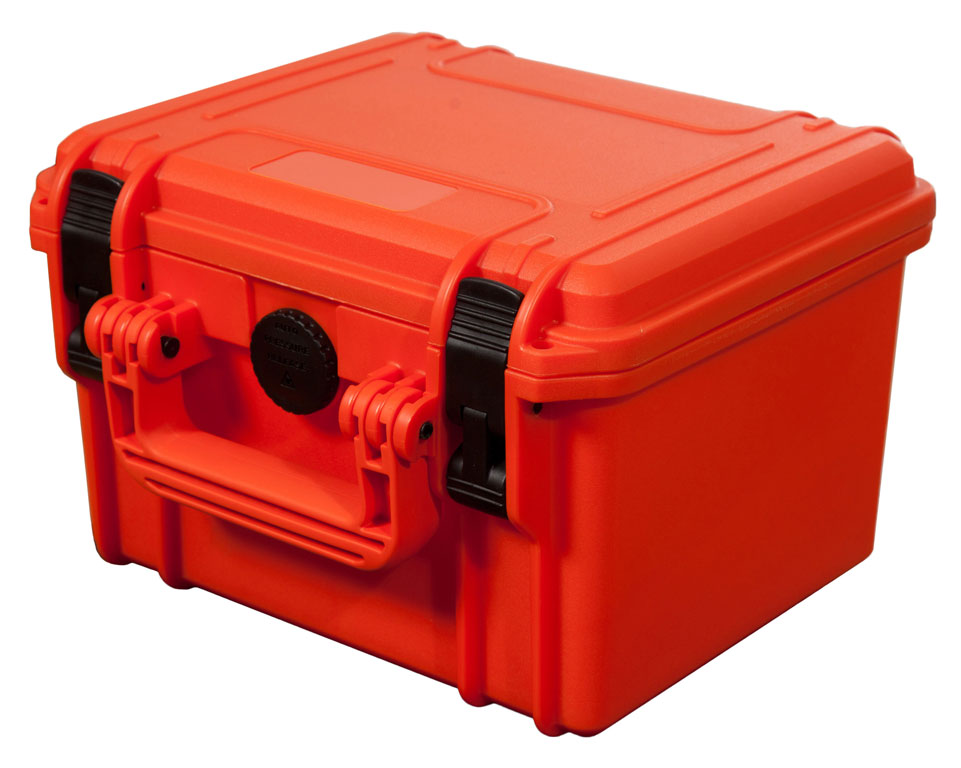

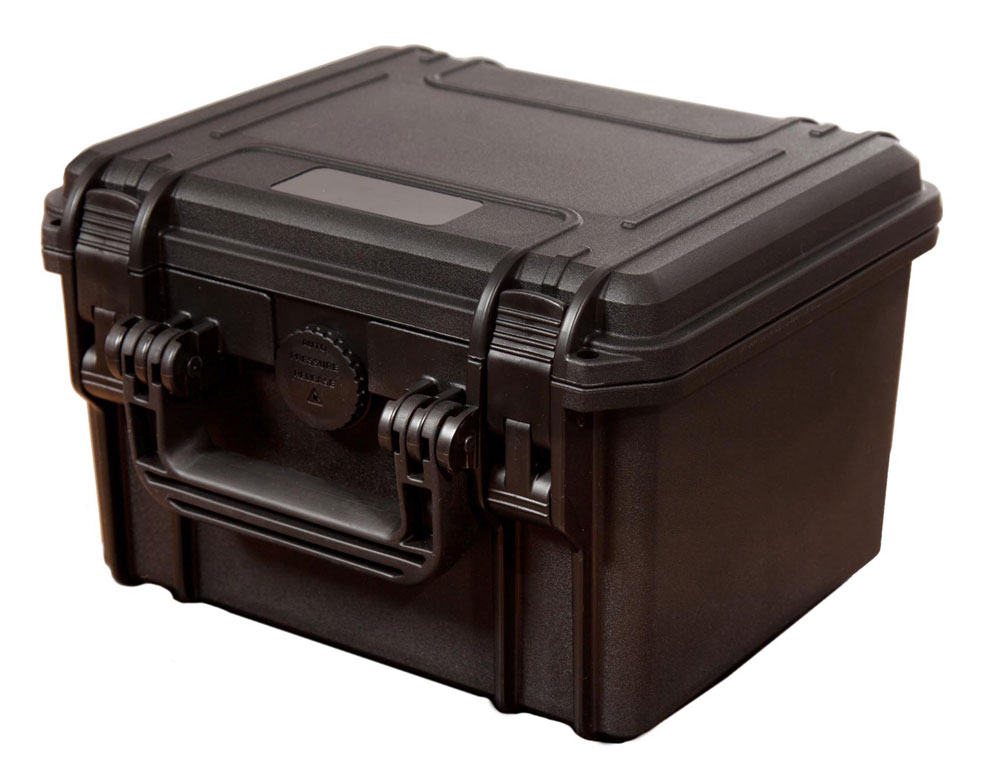

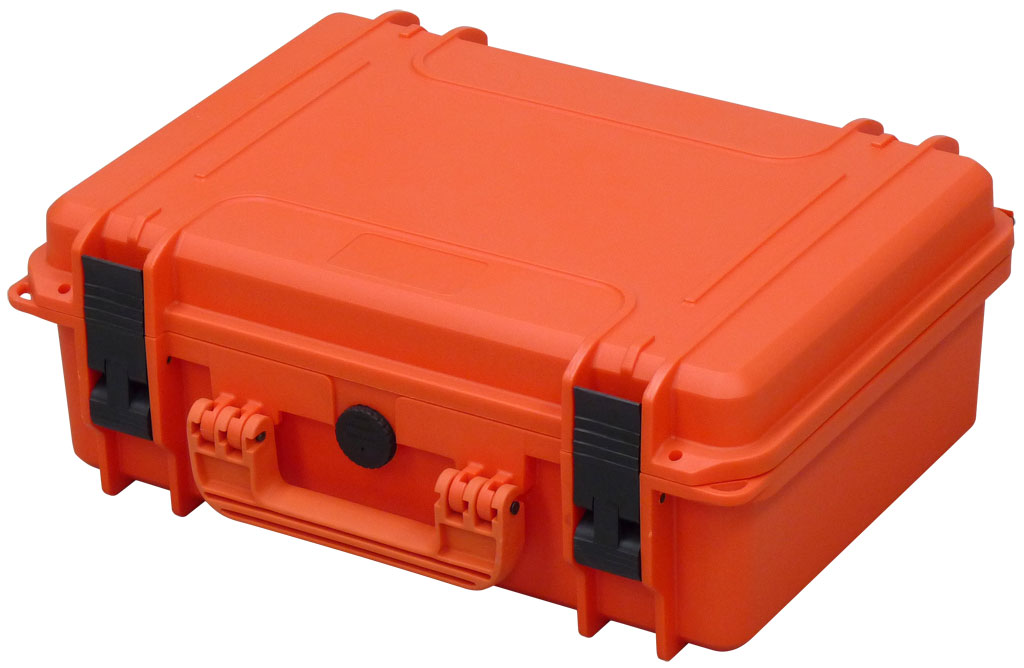

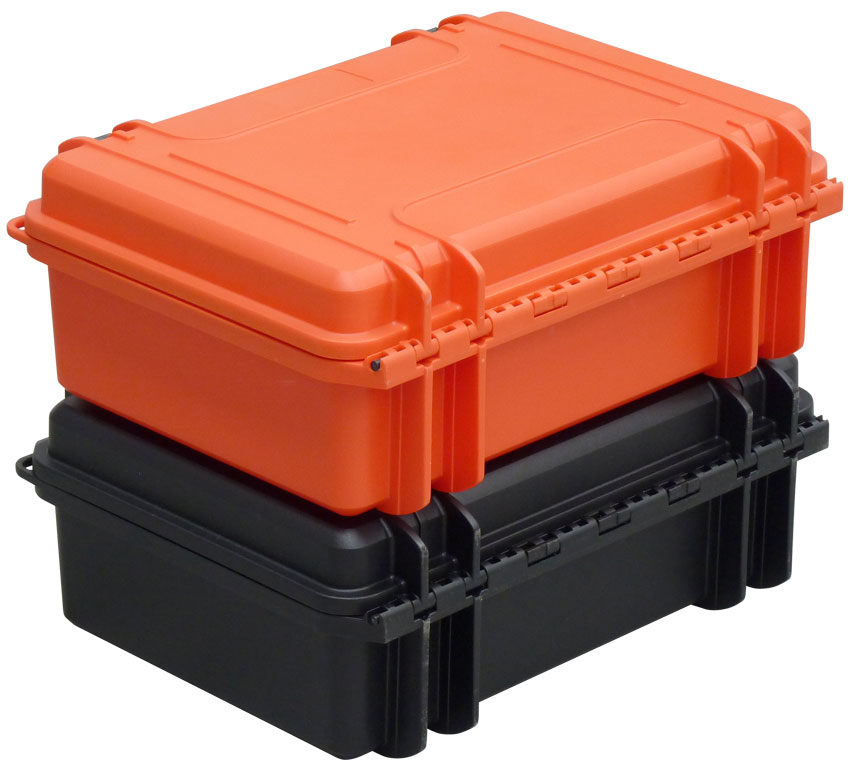

TECTRA Eco MAX case models: 235, 235H, 300, 430 and 505 are produced in two colors:
black,

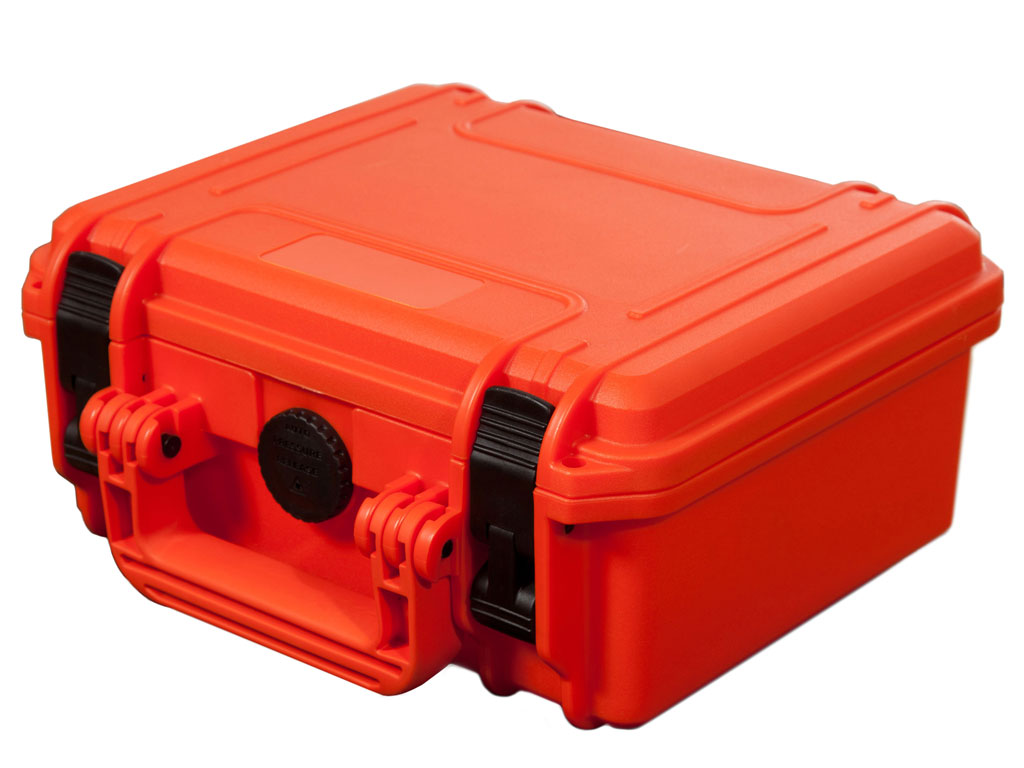

orange.

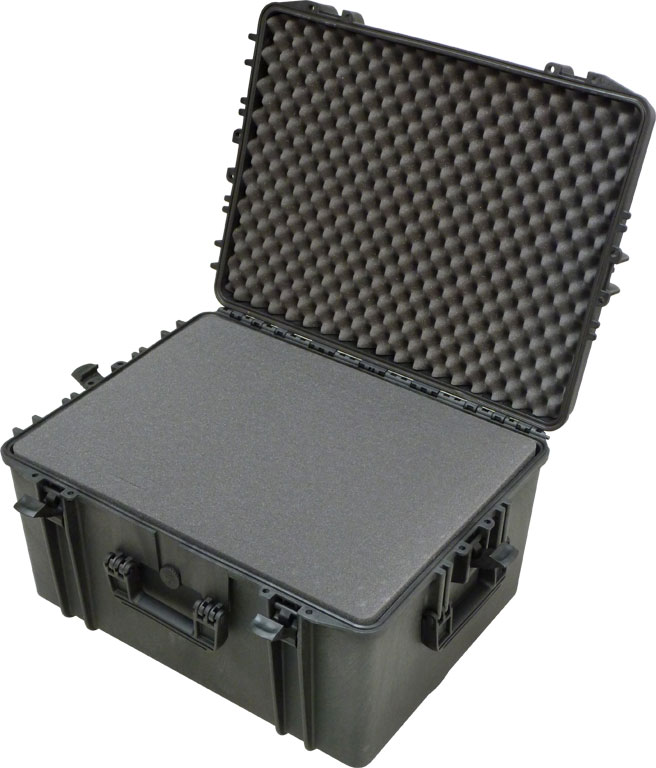

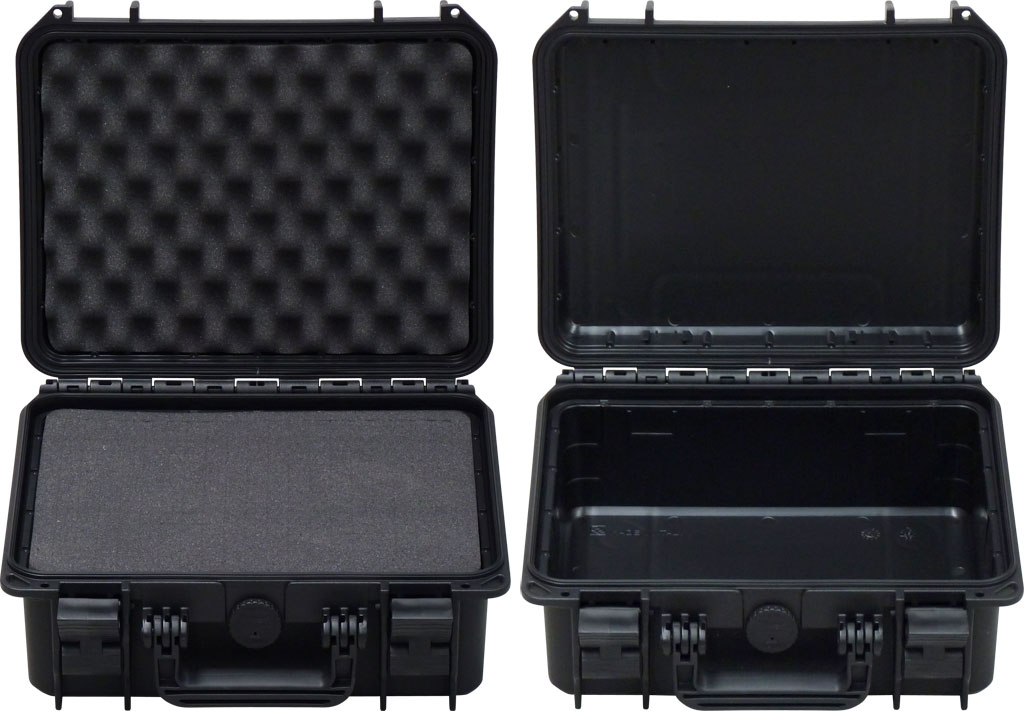

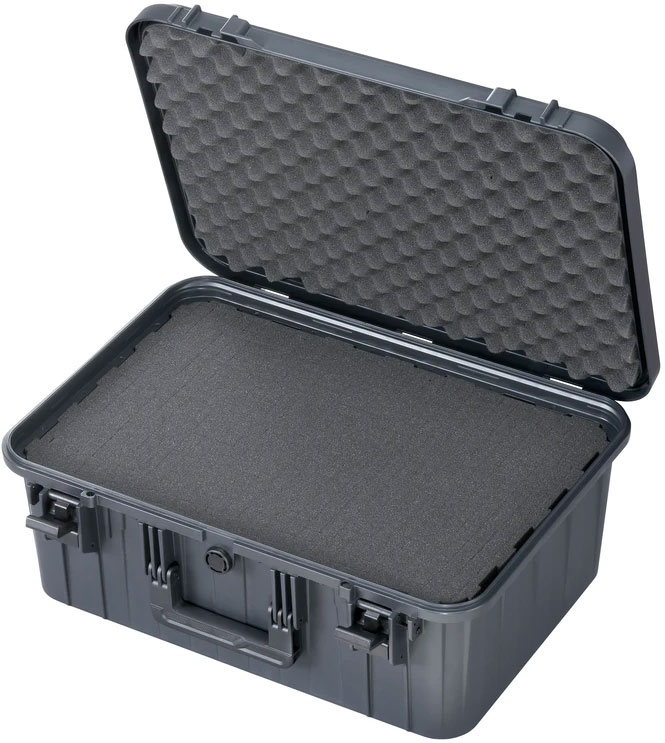

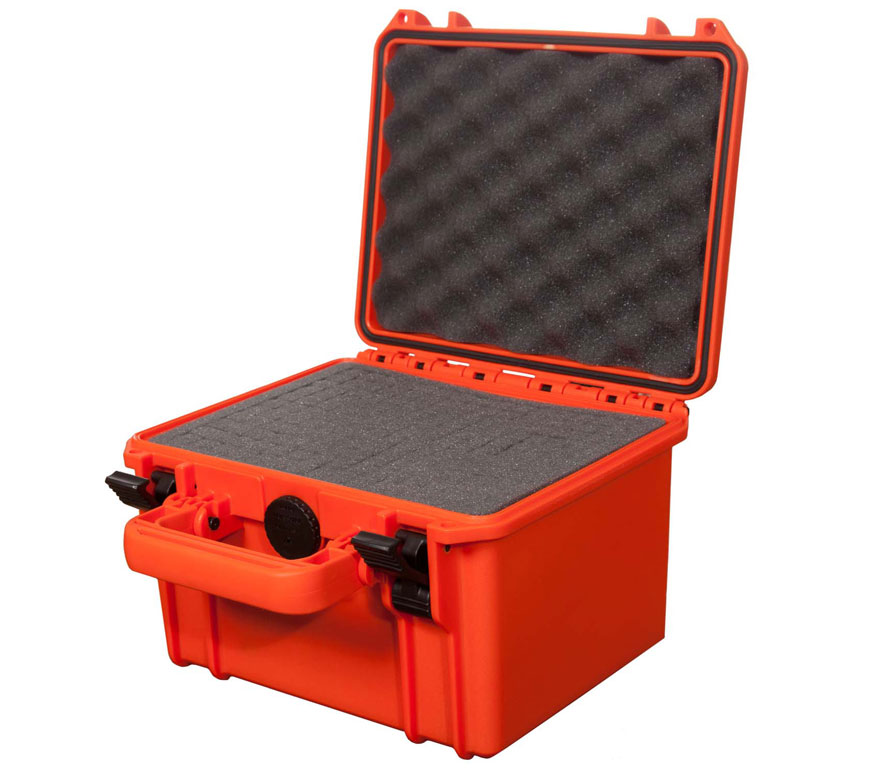

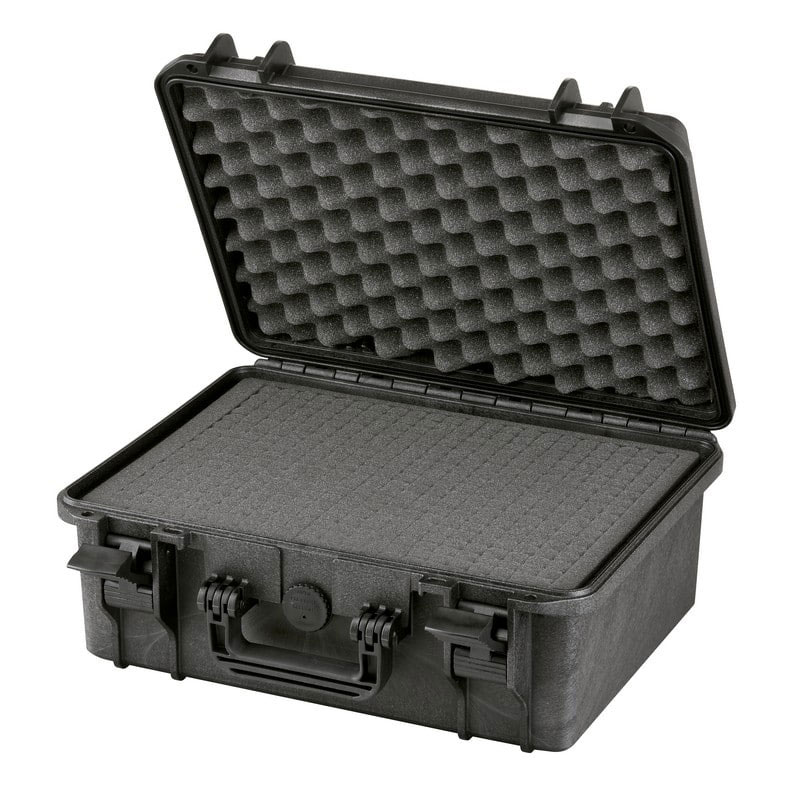

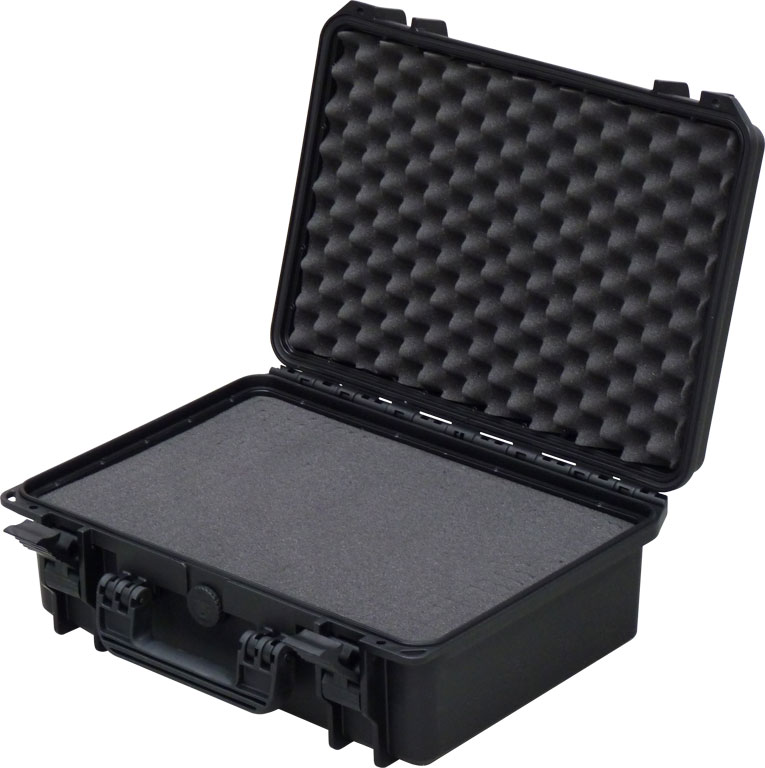

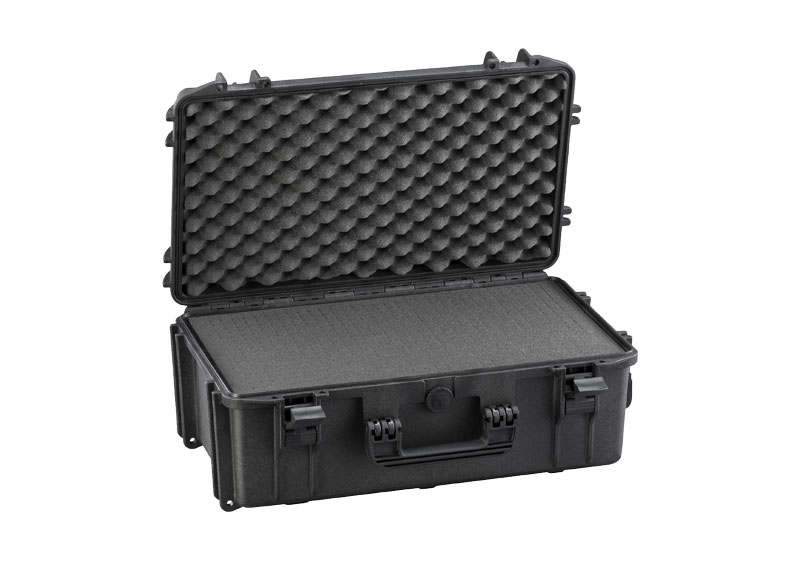

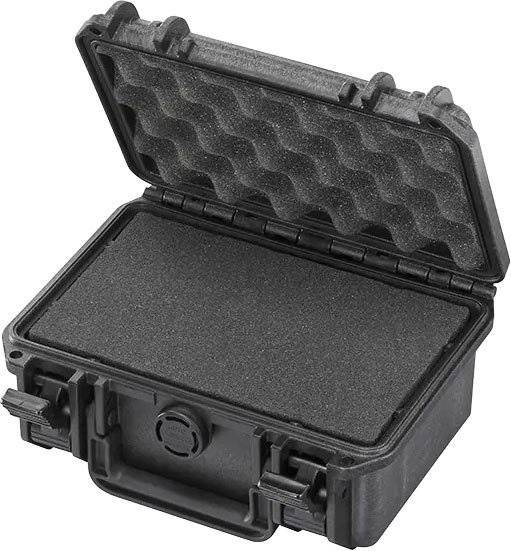

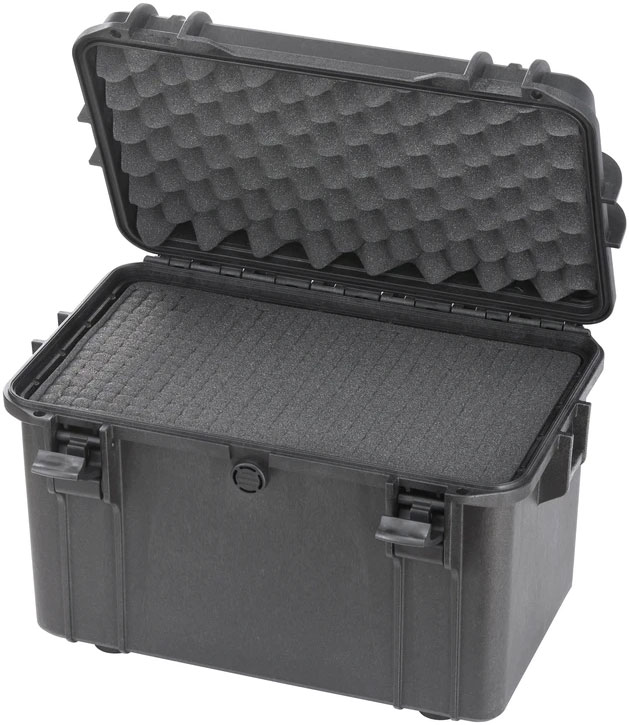

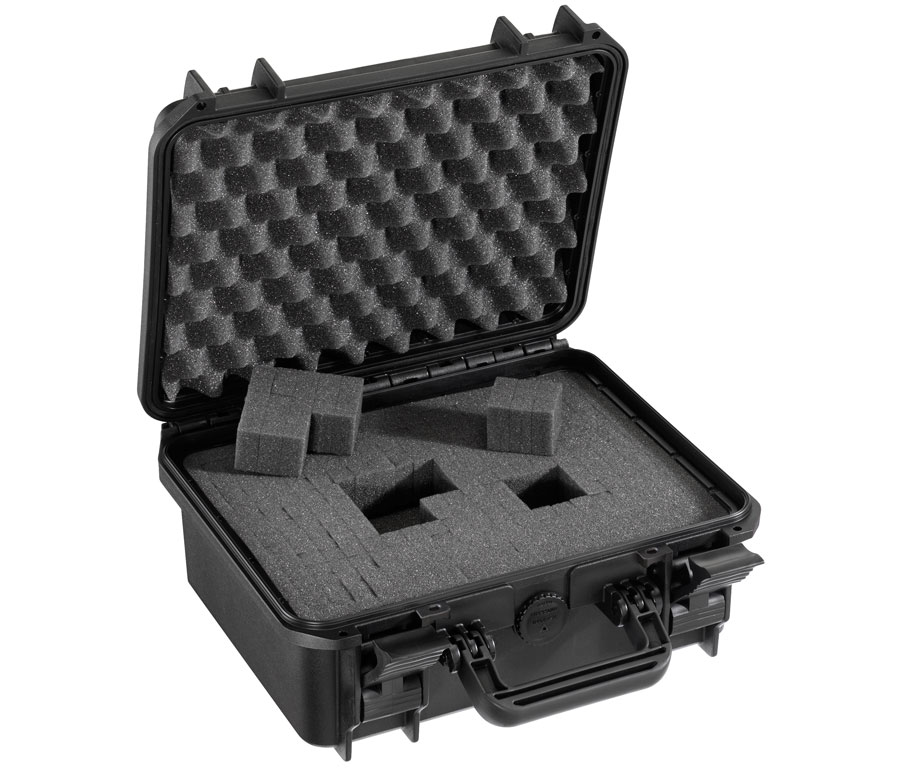

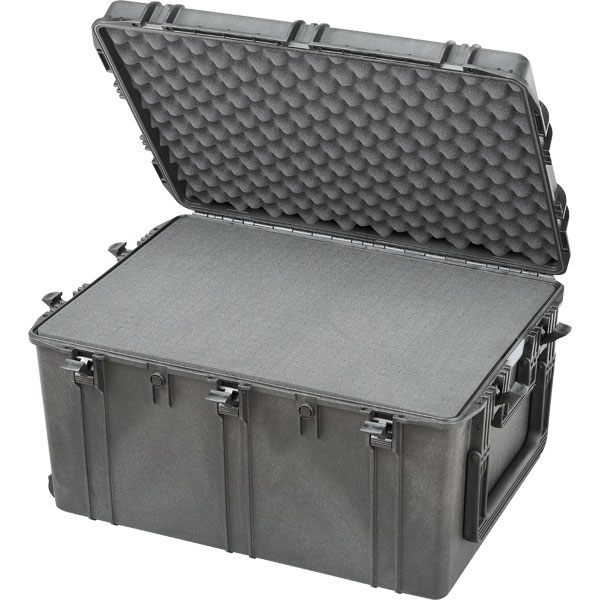

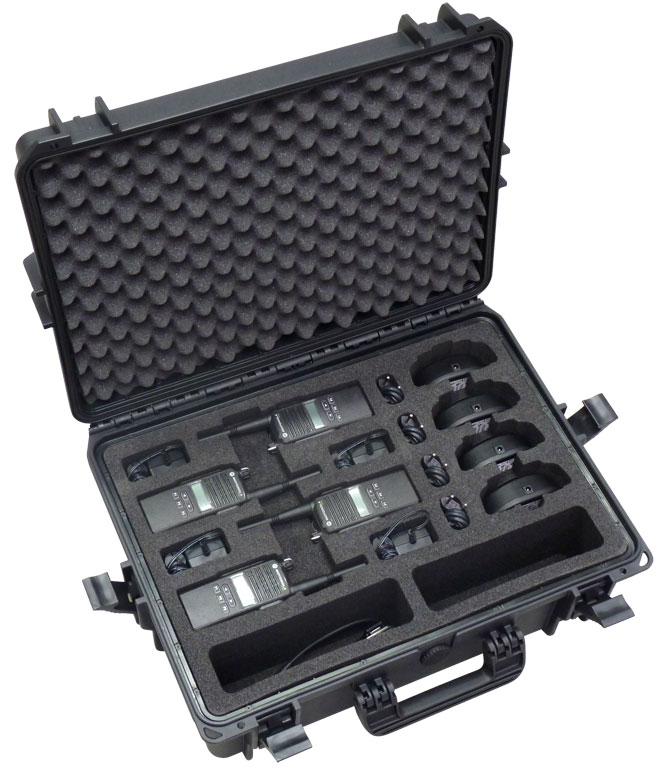

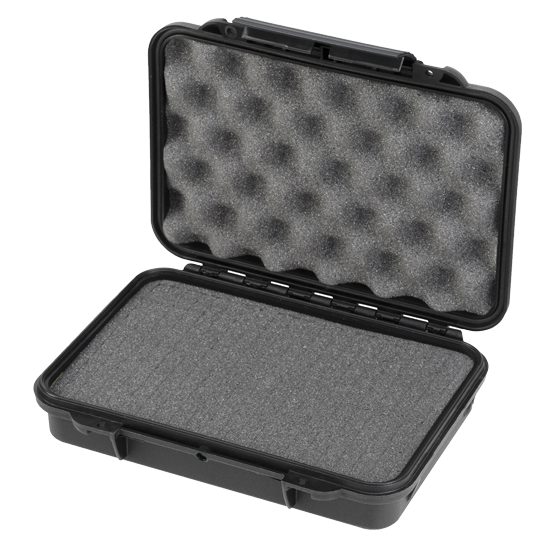

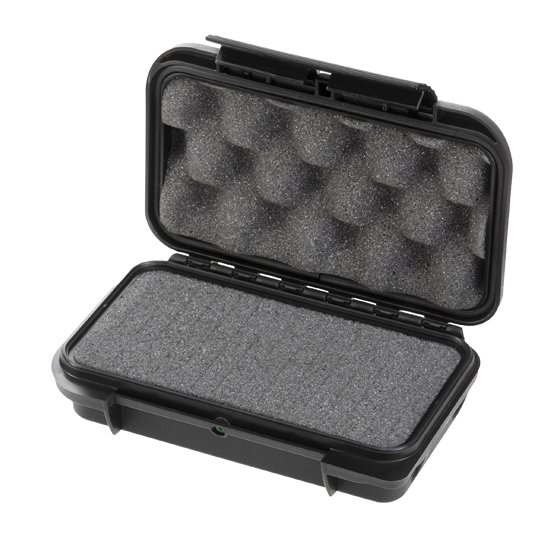

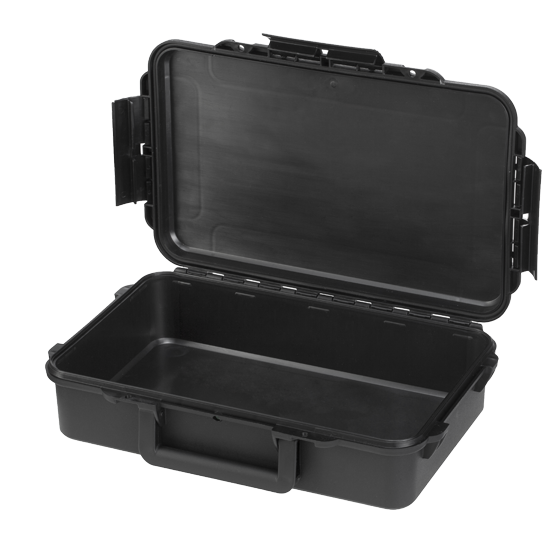

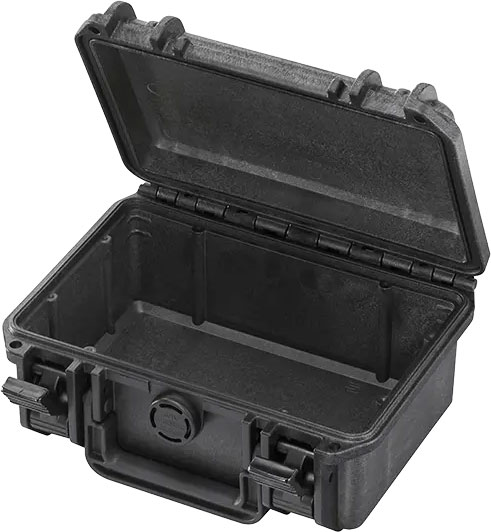

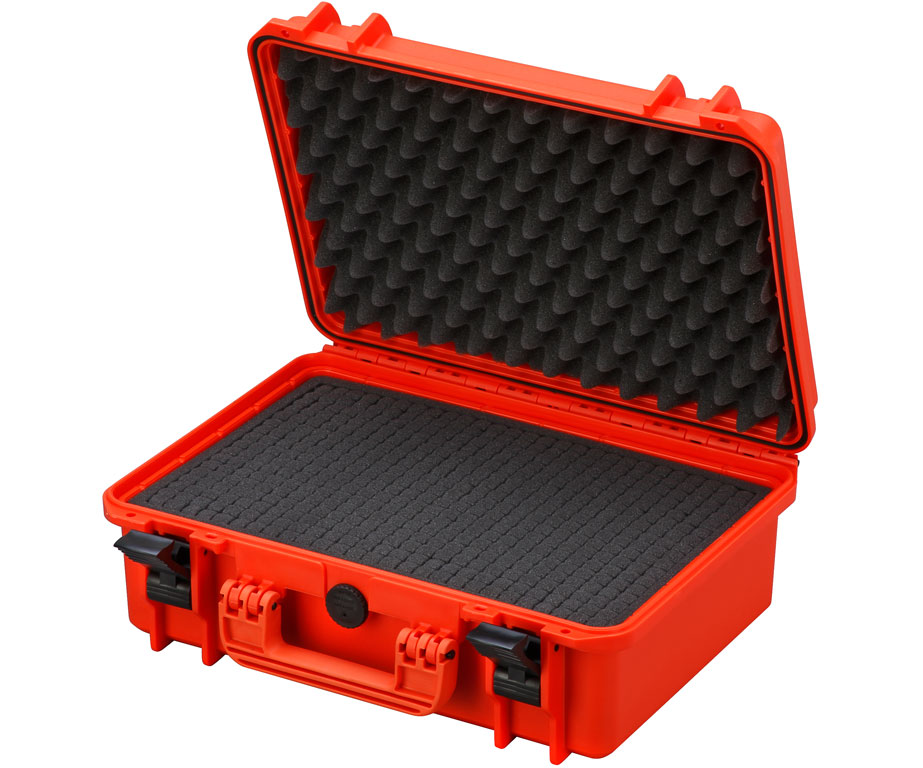

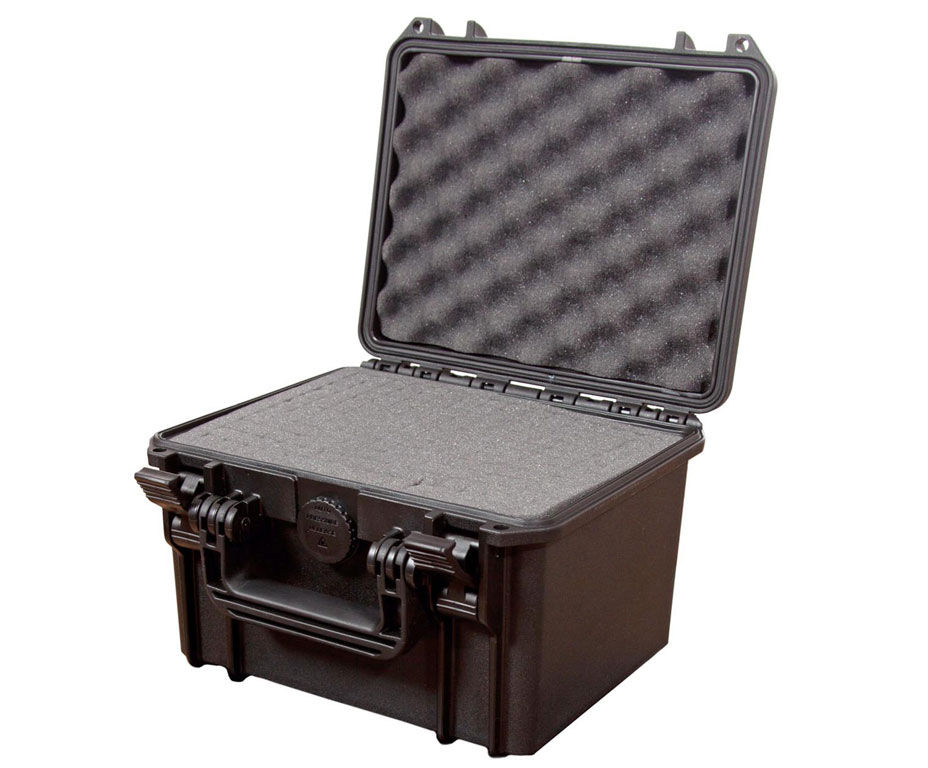

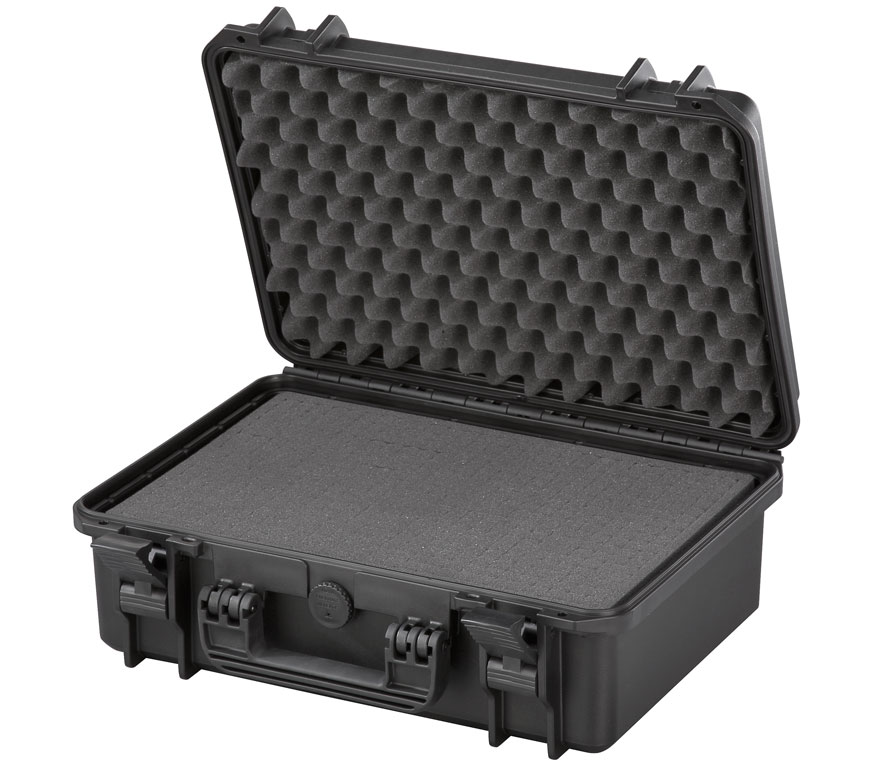

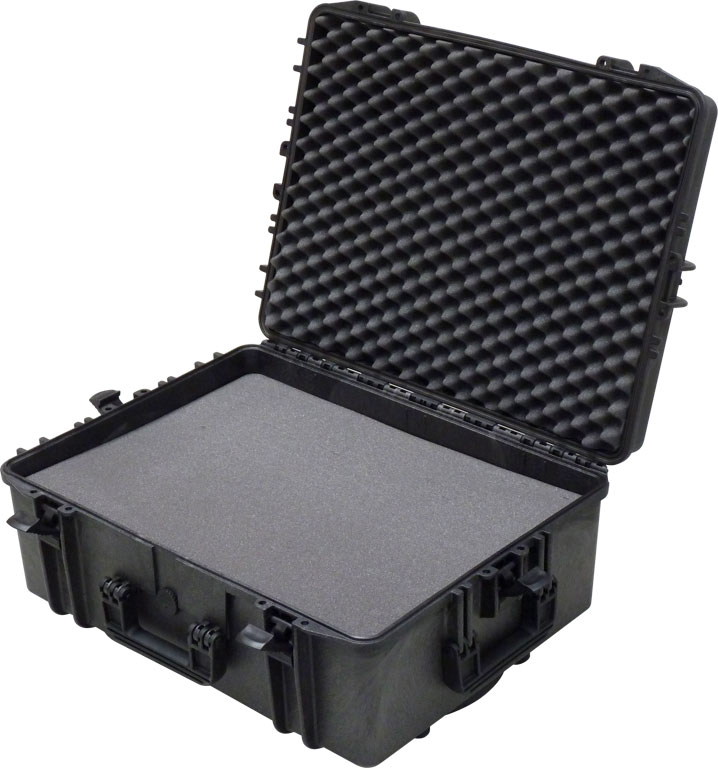

TECTRA Eco MAX cases are supplied with a standard raster foam filling (allows user to manually adjust the items placed in the suitcase) or without filling.

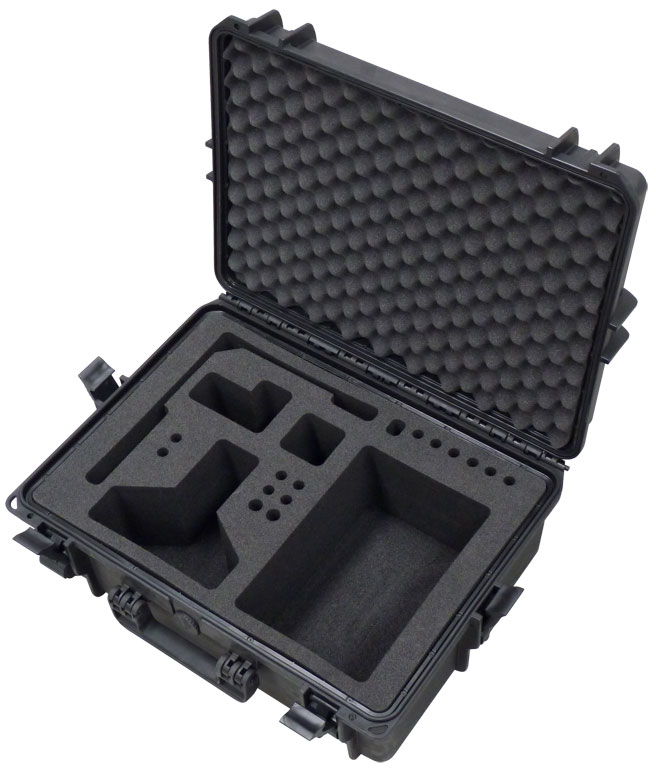

Polyethylene foam padding. We do (milled on CNC machine) PE fill exactly fit your needs.

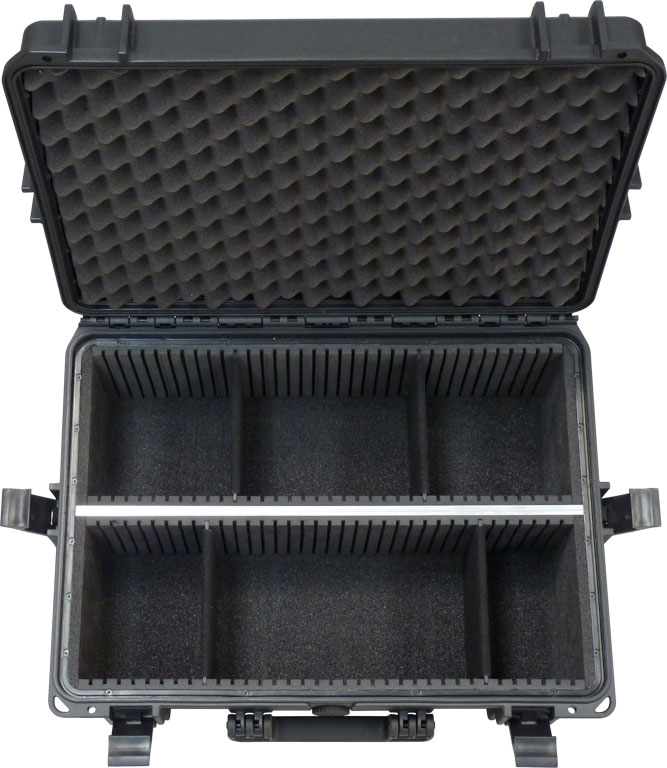

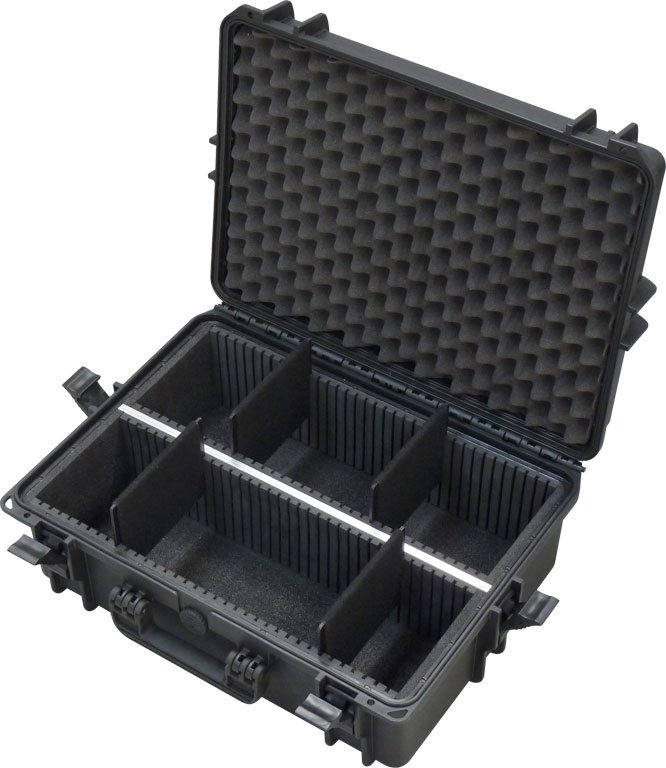

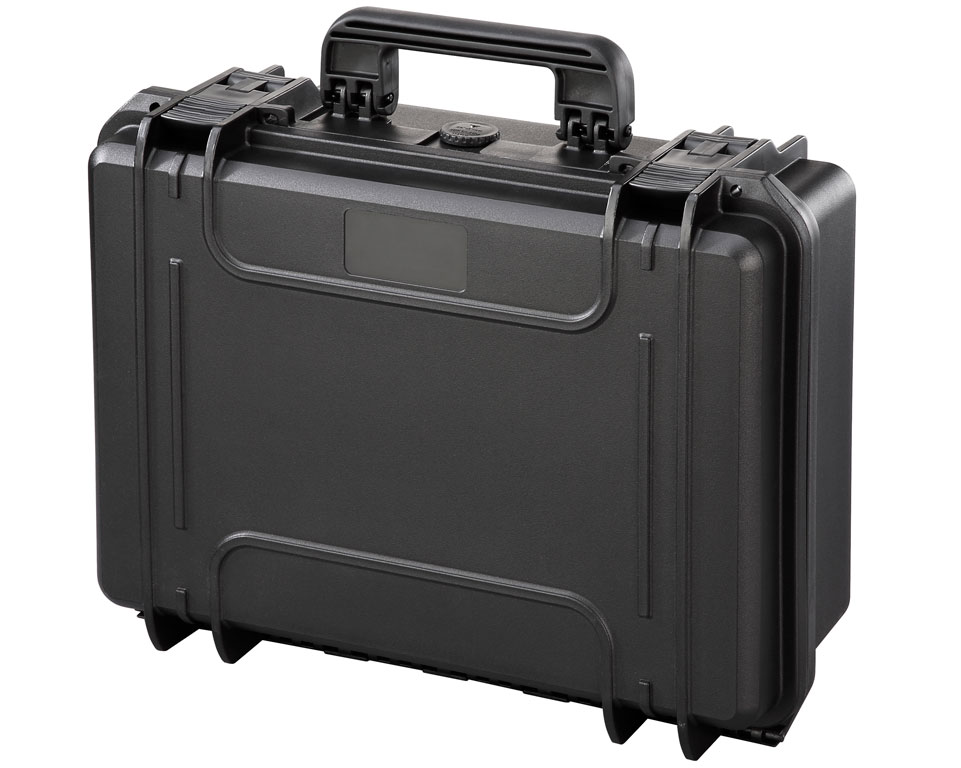

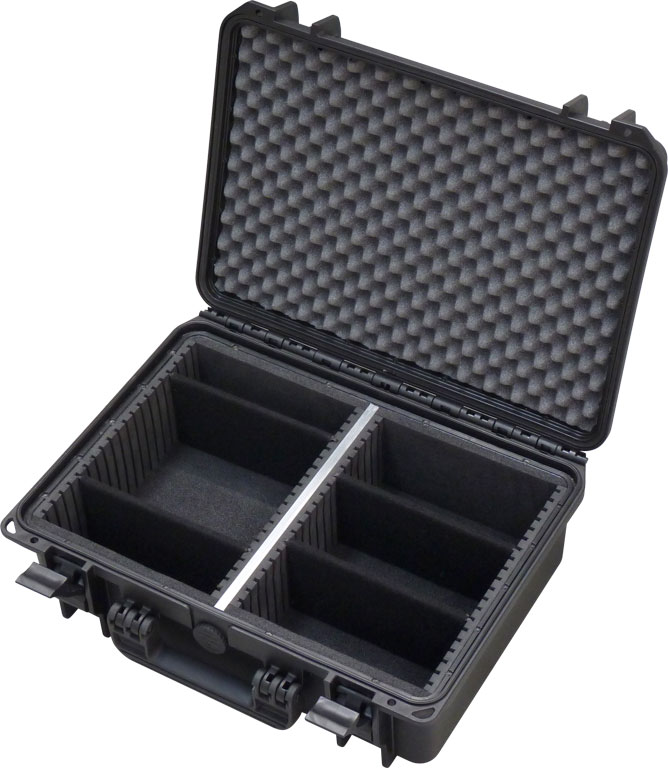

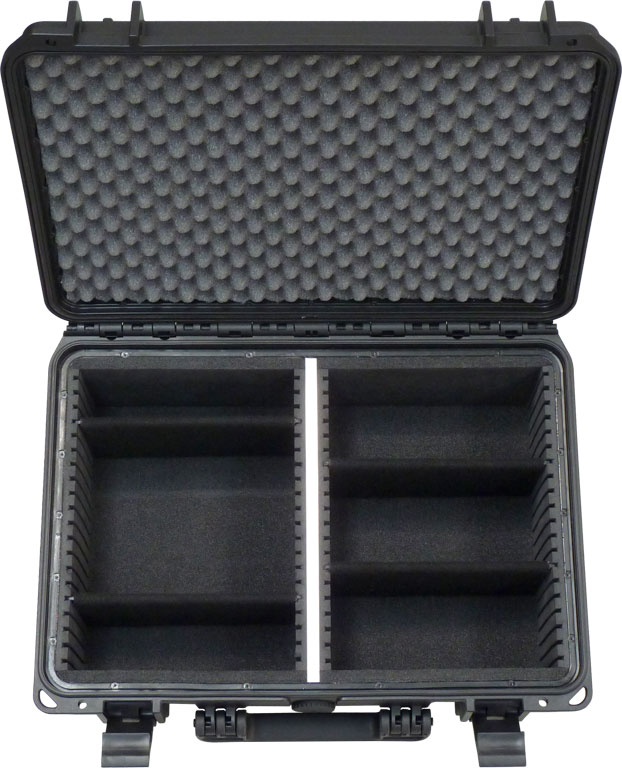

TECTRA Eco MAX models MAX430, MAX505
version with movable partitions.

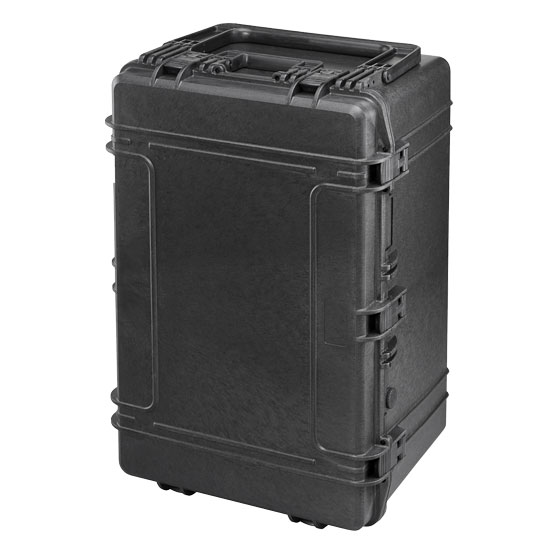

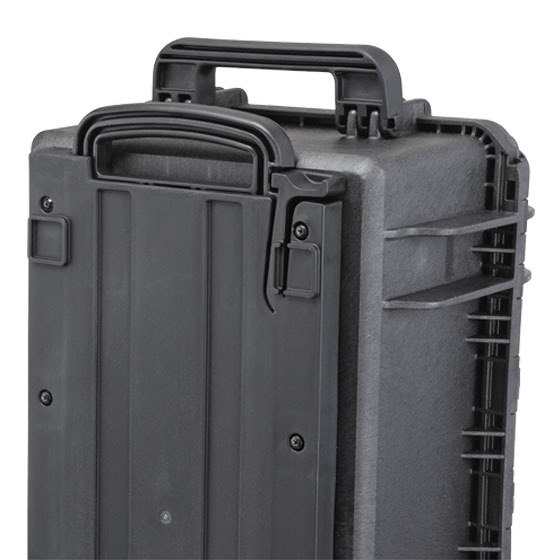

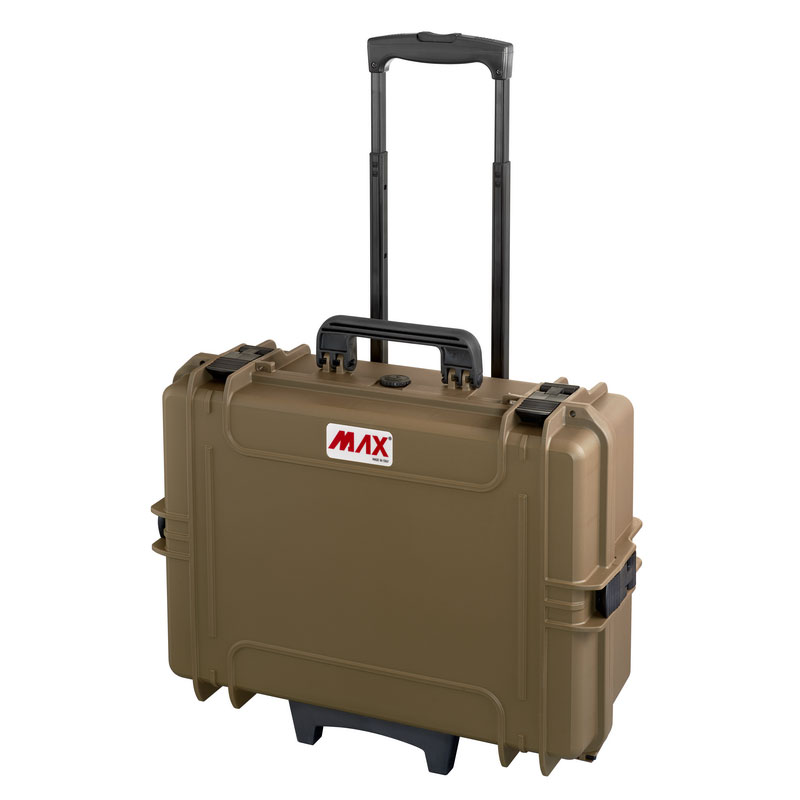

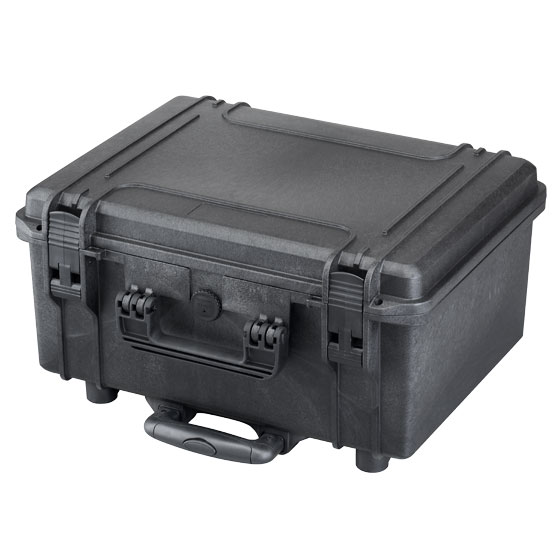

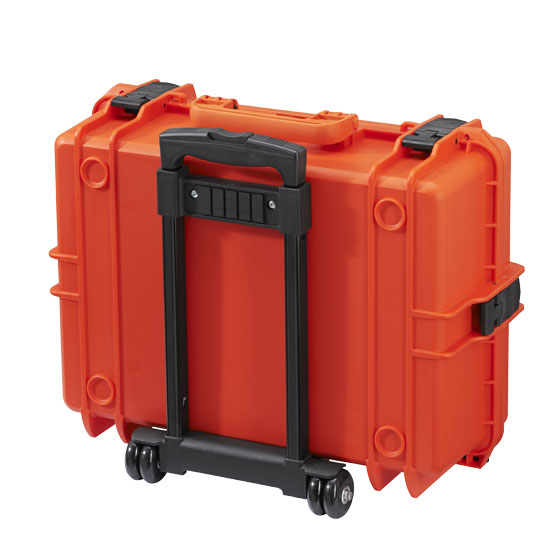

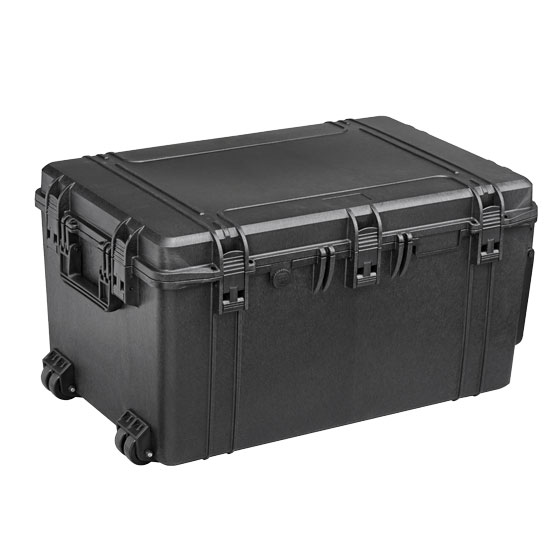

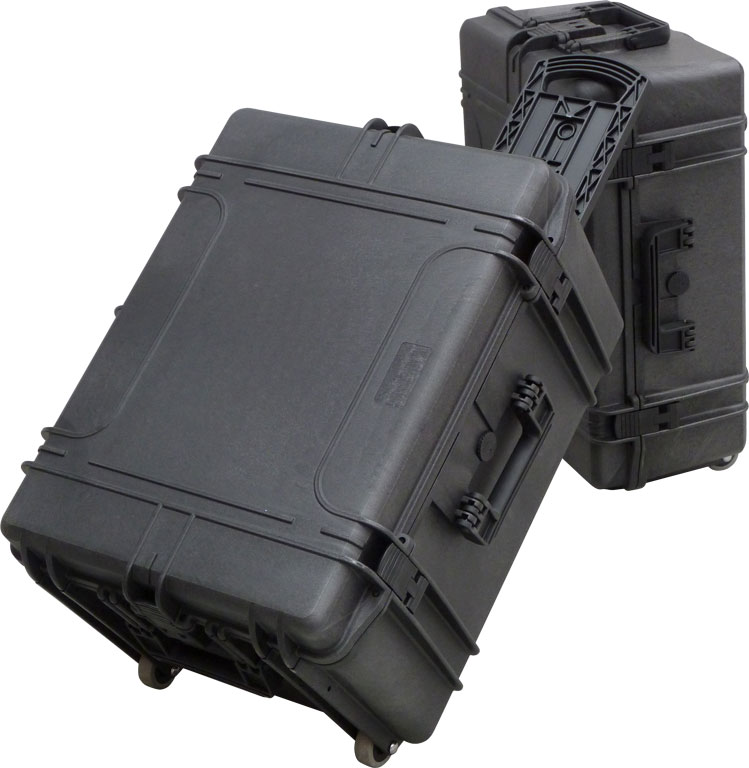

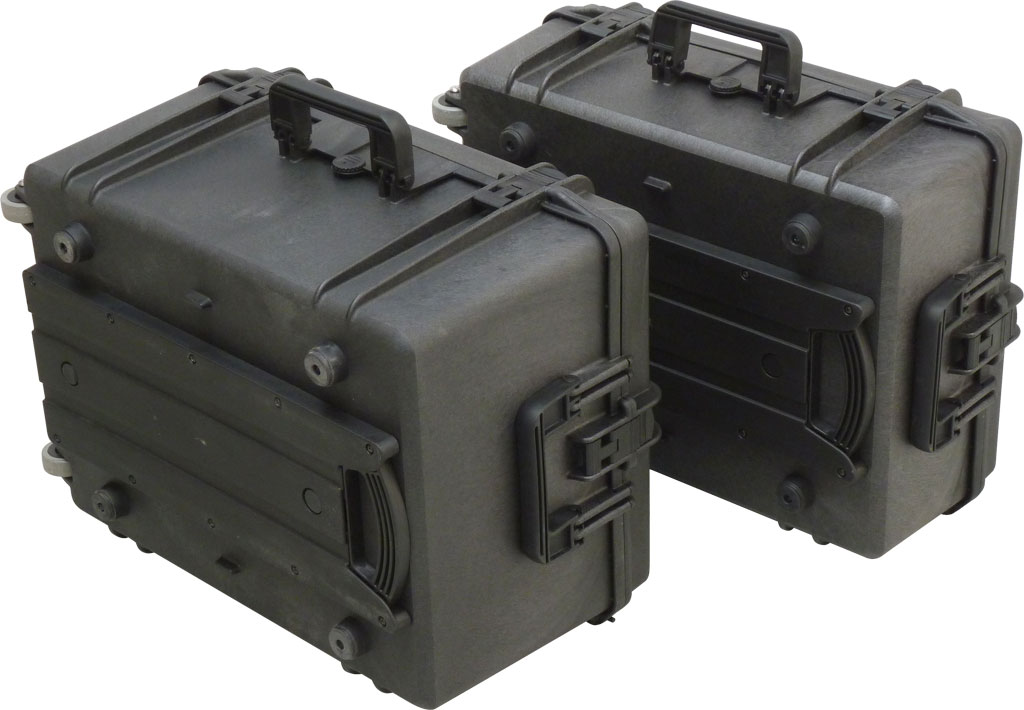

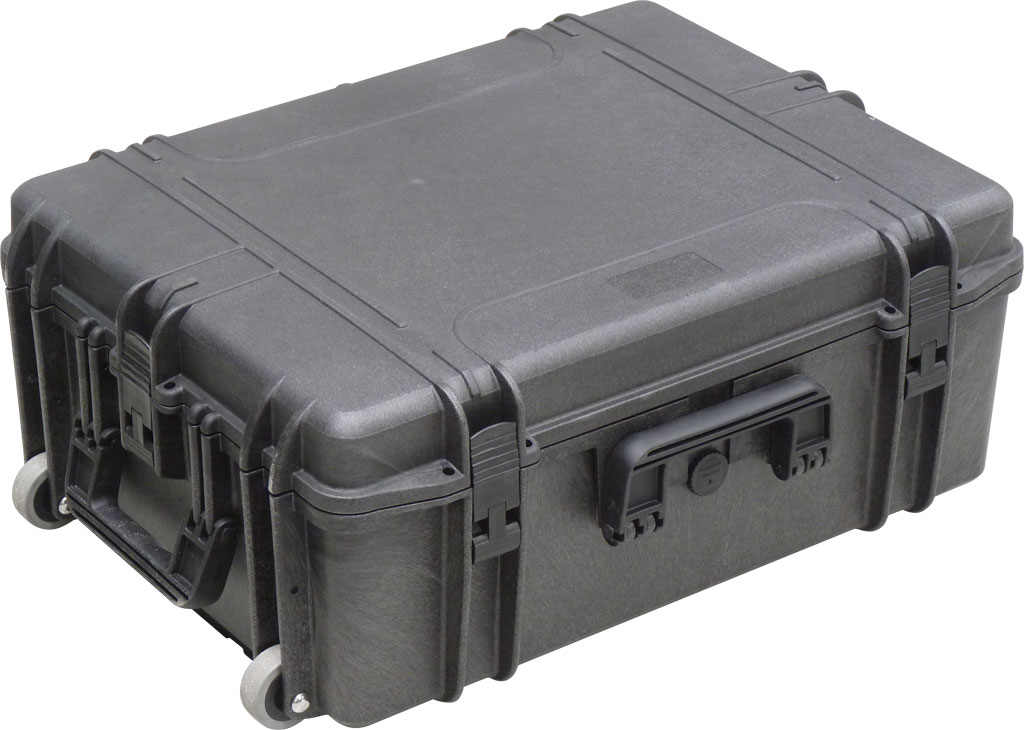

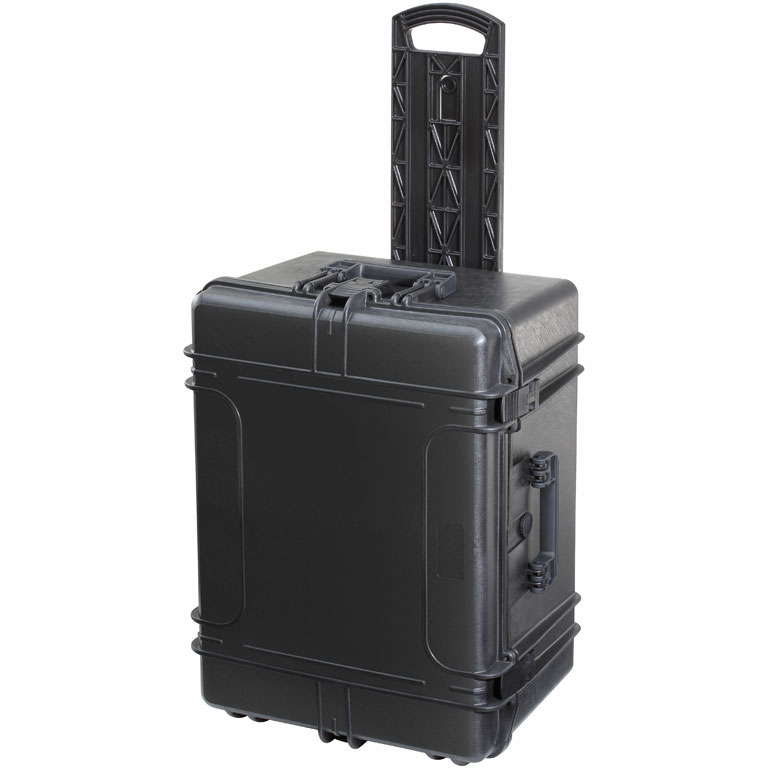

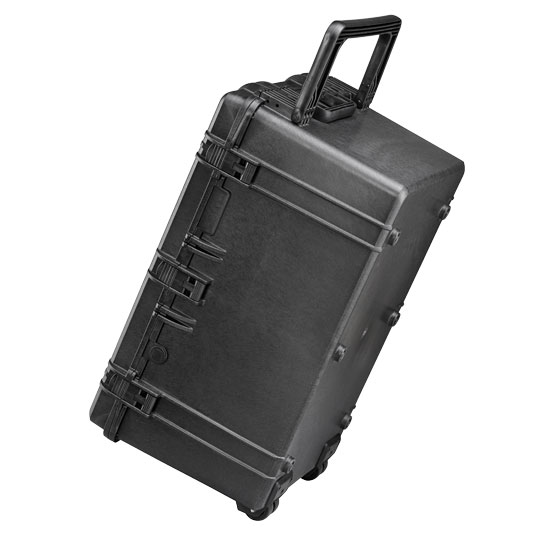

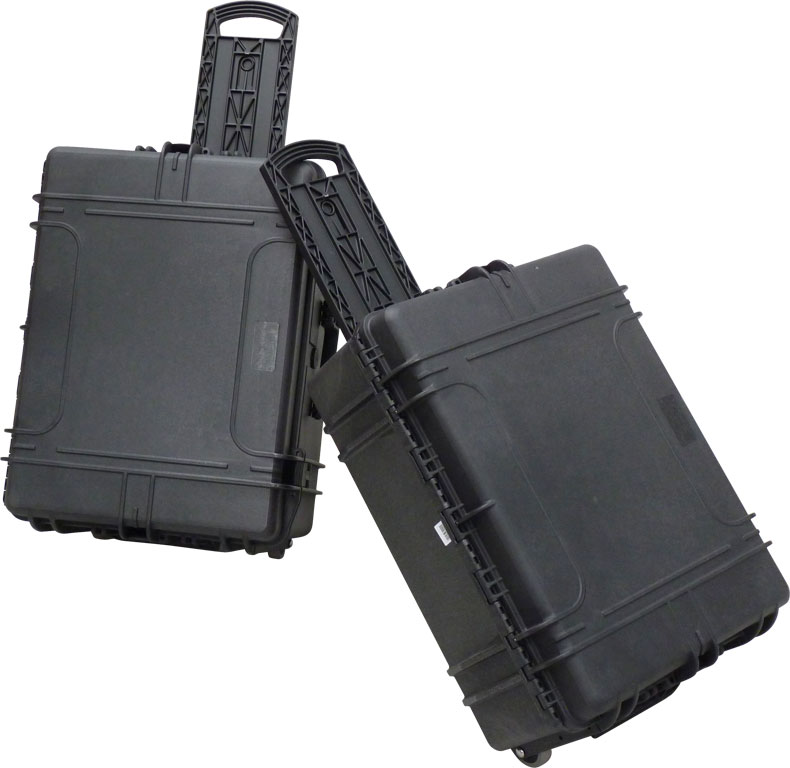

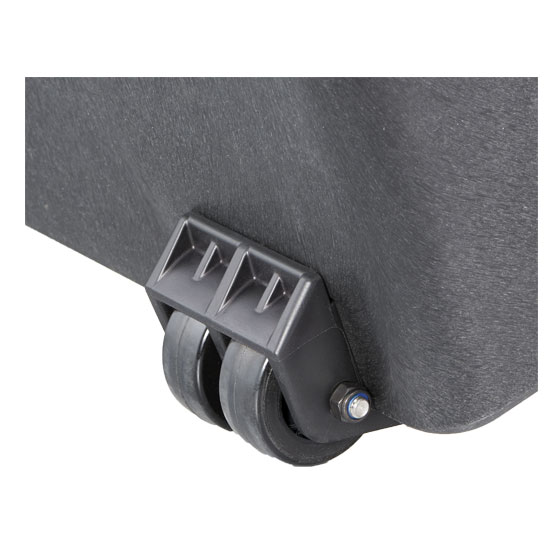

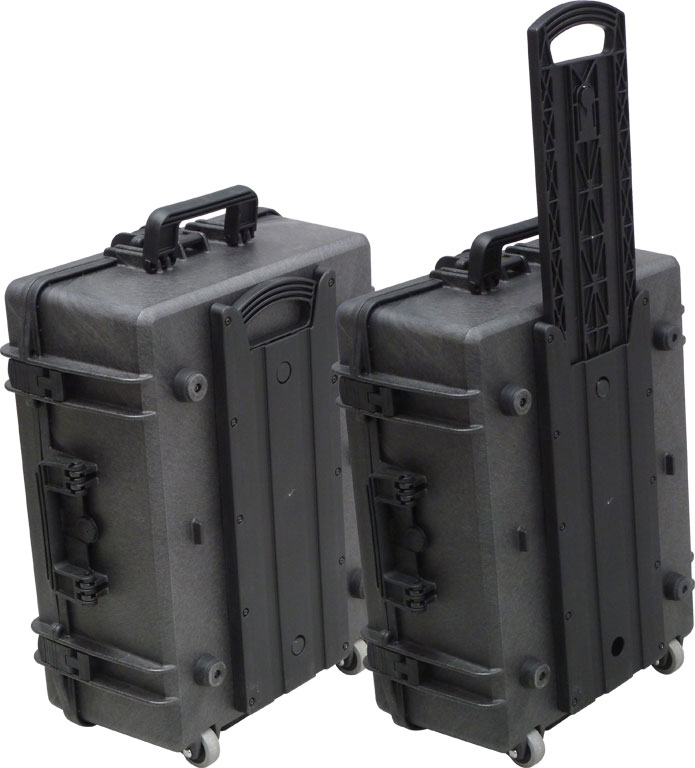

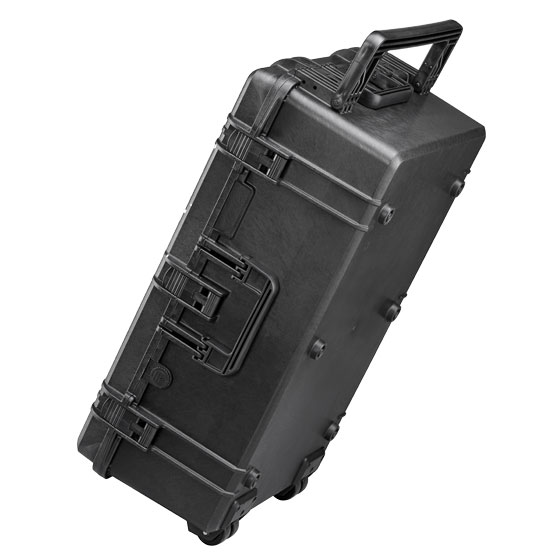

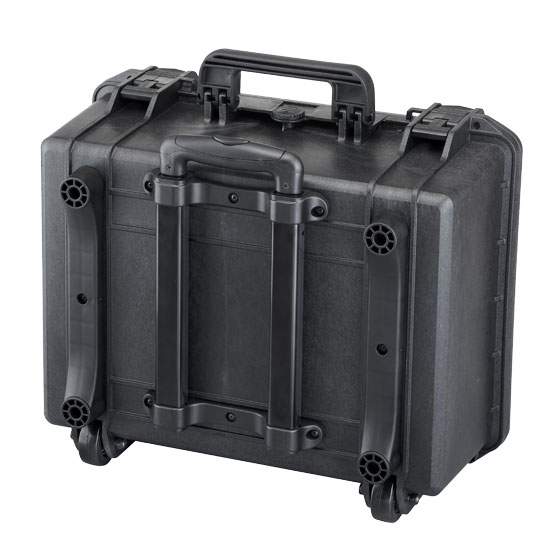

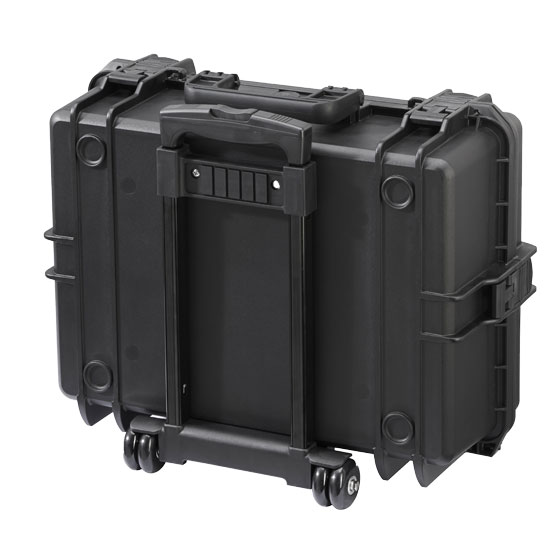

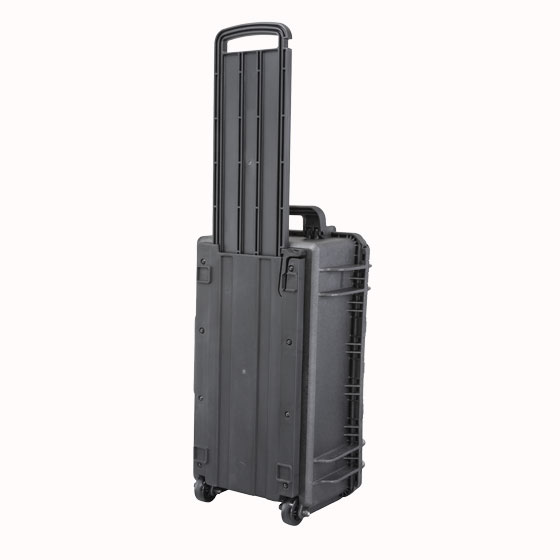

TECTRA Eco MAX large cases are equipped with slide-in handle and wheels for easy transport.

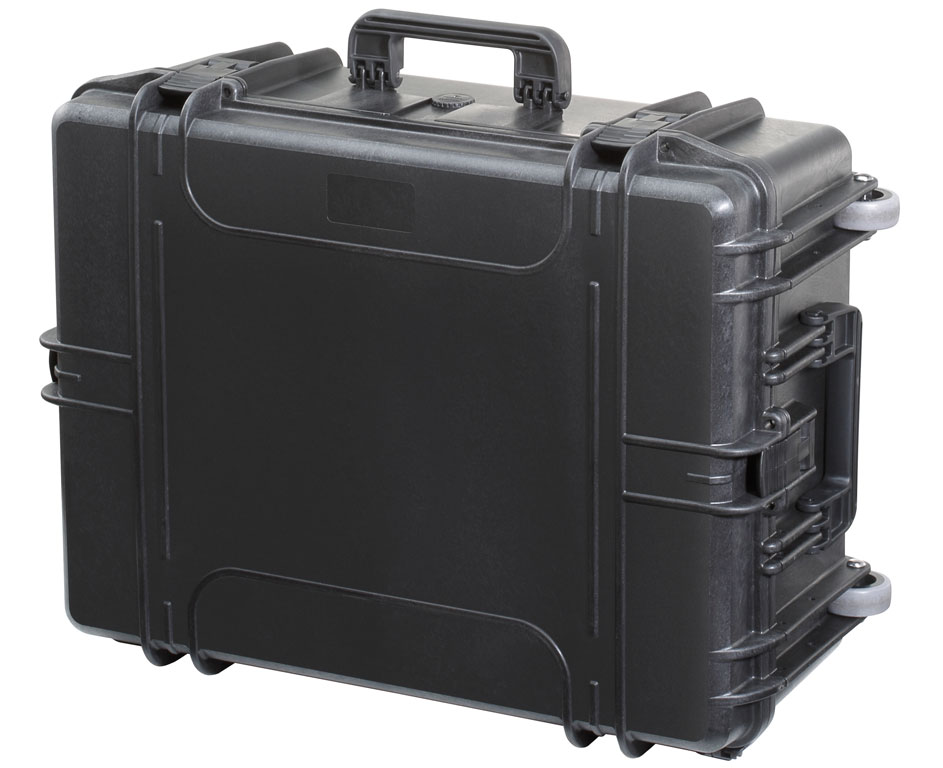

TECTRA Eco MAX model MAX620 H250.

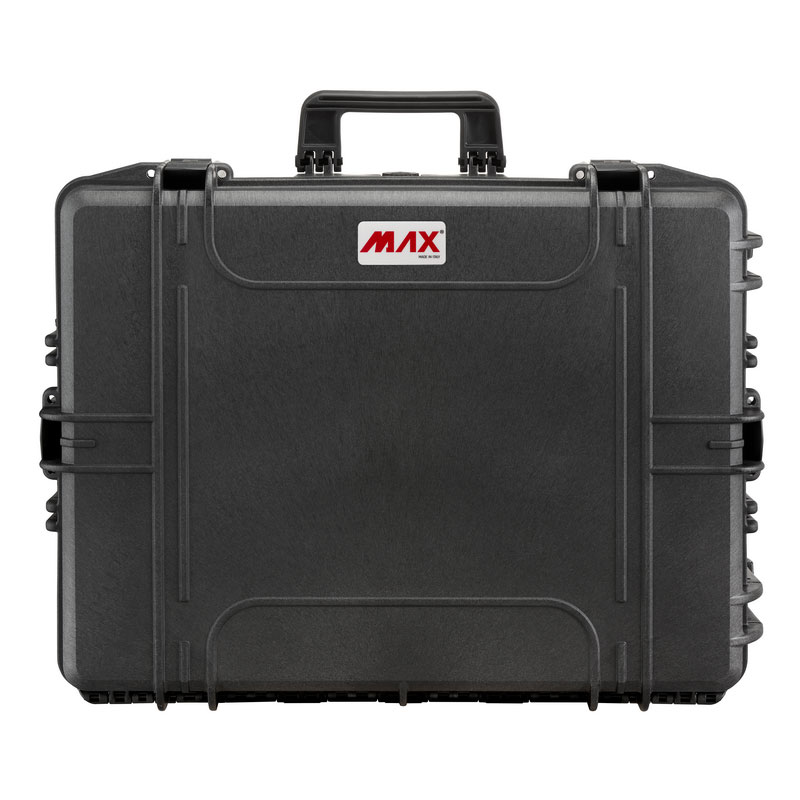

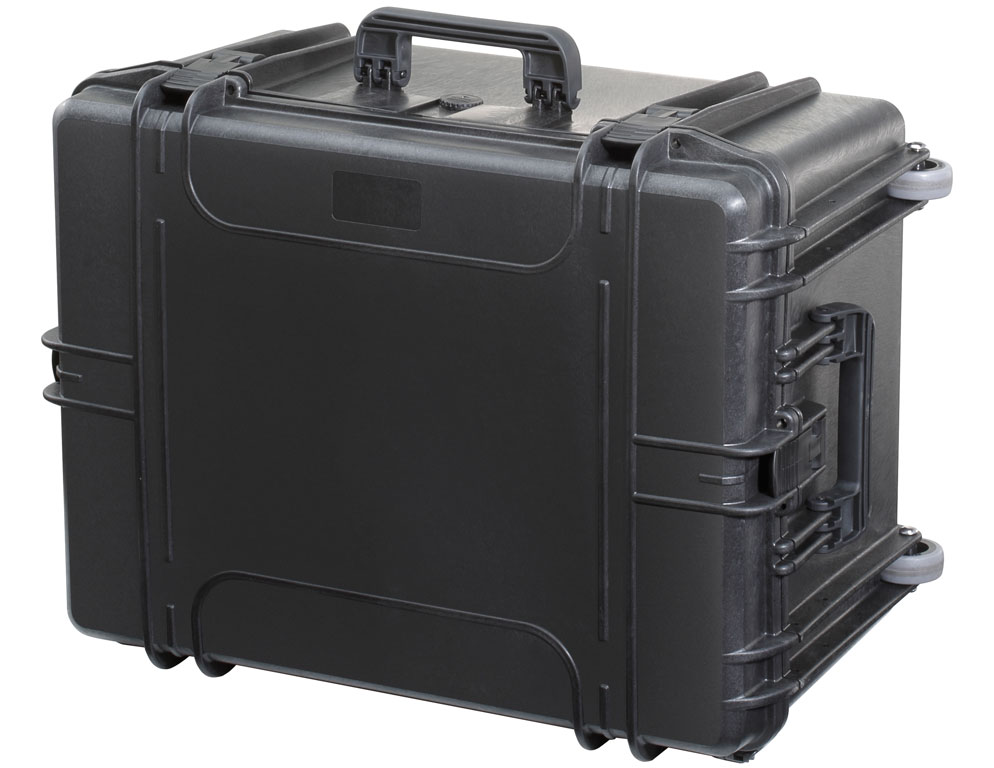

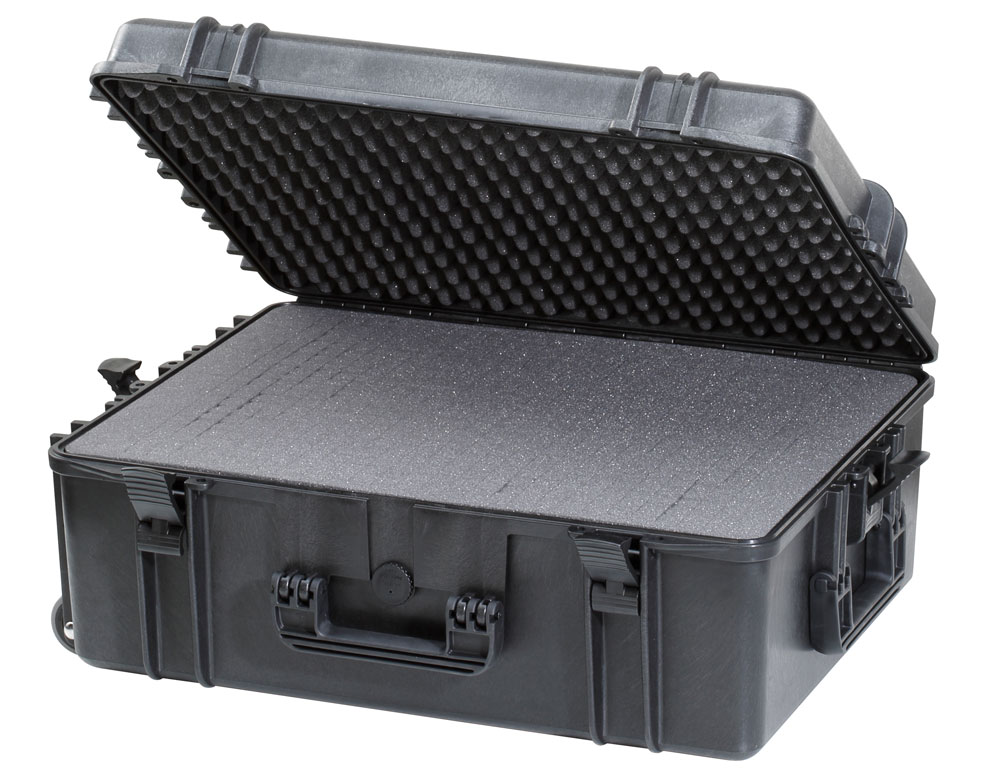

TECTRA Eco MAX model MAX620 H340S.

TECTRA ECO dim

model	version	dimensions [mm]								weight [kg]	configuration			colours
		external			internal						empty	cubed foams	trolley	black	orange	sahara
		A	B	H	a	b	h	h1	h2		empty	cubed foams	trolley	black	orange	sahara

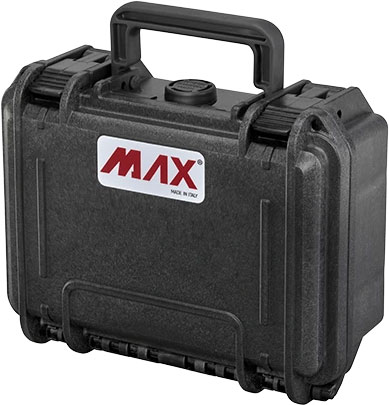

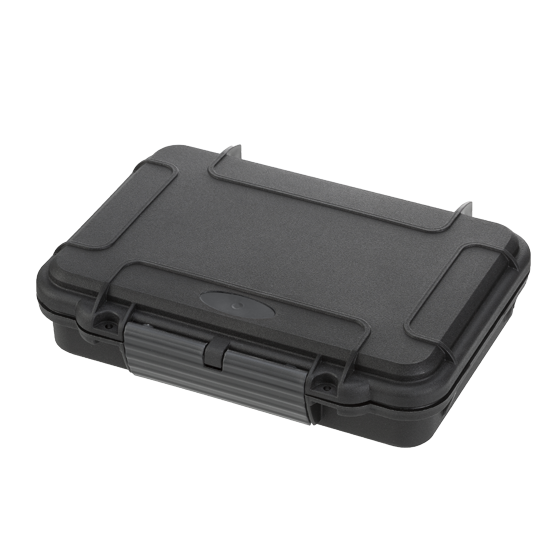

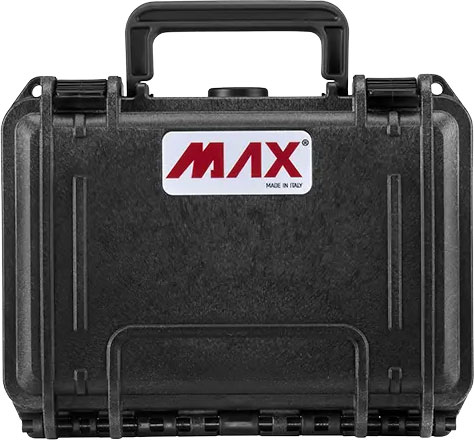

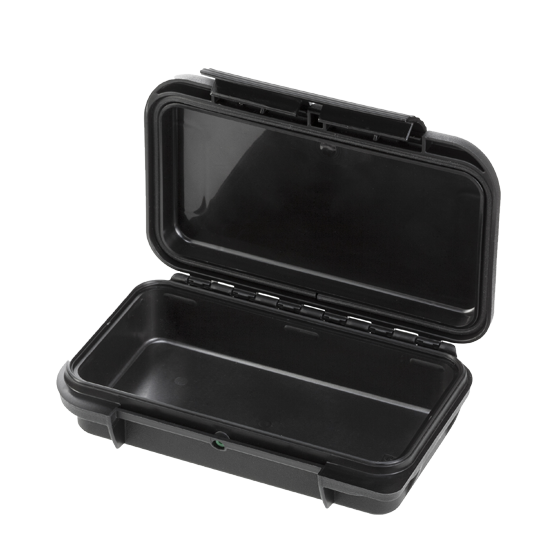

MAX200	MAX200	223	172	102	200	125	90	68,5	21,5	0,54	•			•
MAX200	MAX200S	225	172	102	200	125	90	68,5	21,5	0,65		•		•

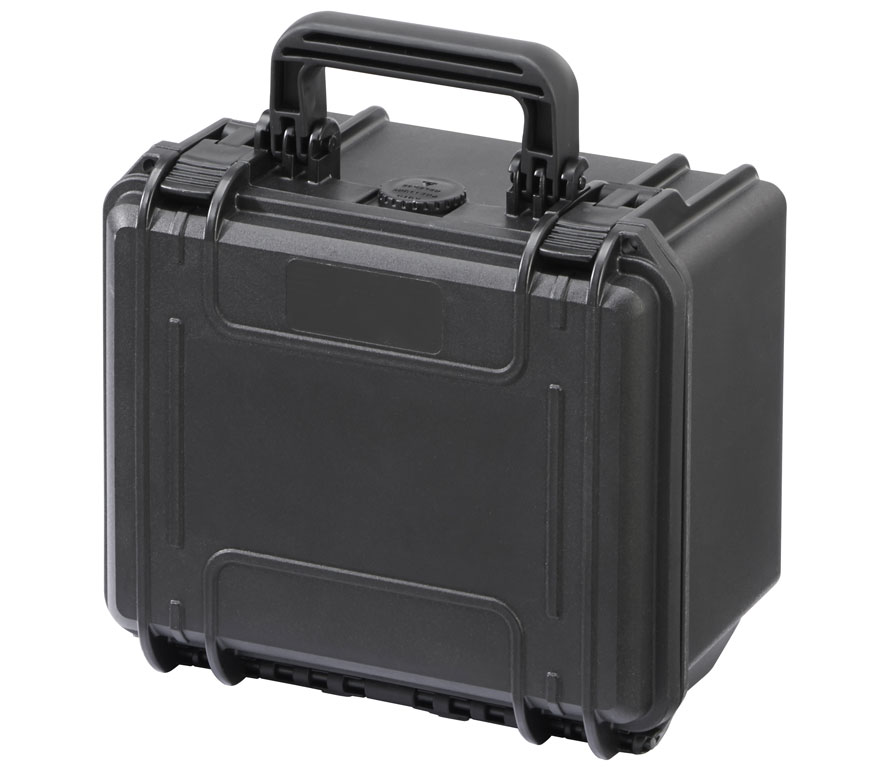

MAX235	MAX235 H105	258	243	117,5	235	180	106	81	25	0,82	•			•	•
	MAX235 H105S	258	243	117,5	235	180	106	81	25	0,88		•		•	•
	MAX235 H155	258	243	167,5	235	180	156	131	25	0,96	•			•	•
	MAX235 H155S	258	243	167,5	235	180	156	131	25	1,06		•		•	•

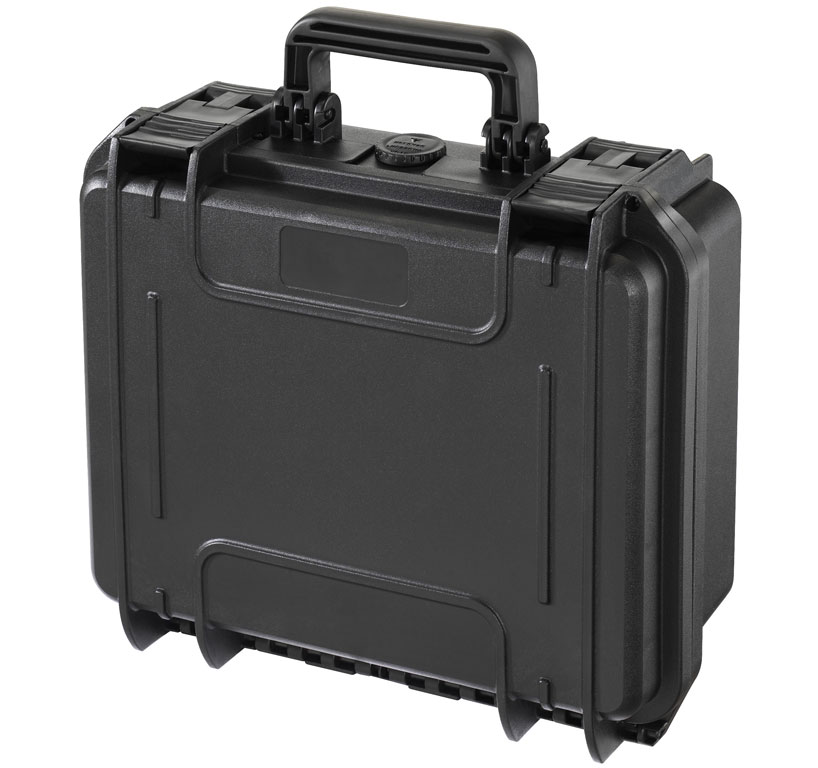

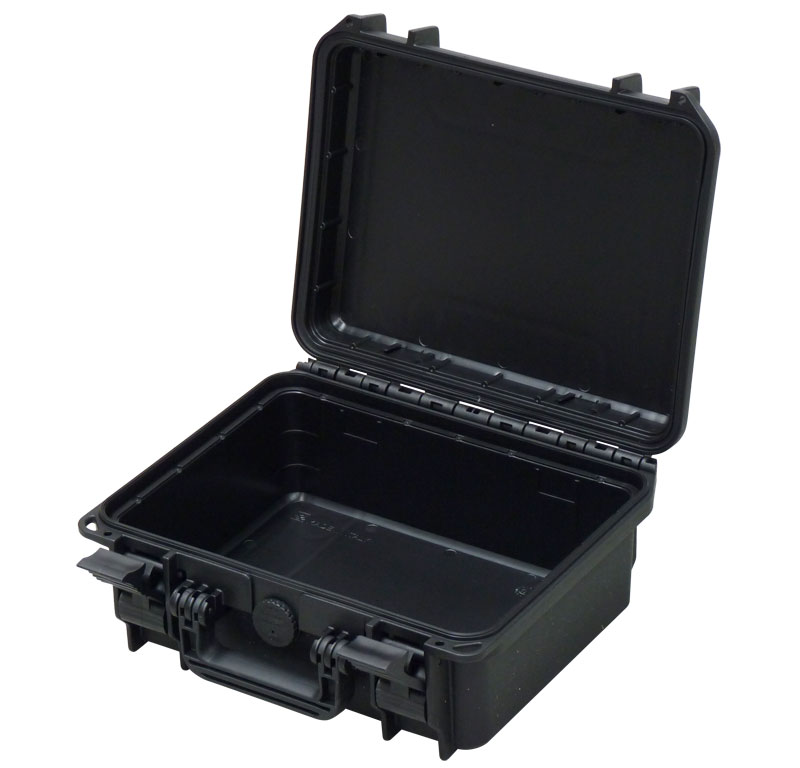

MAX300	MAX300	336	300	148	300	225	132	99	33	1,62	•			•	•	•
MAX300	MAX300S	336	300	148	300	225	132	99	33	1,76		•		•	•	•

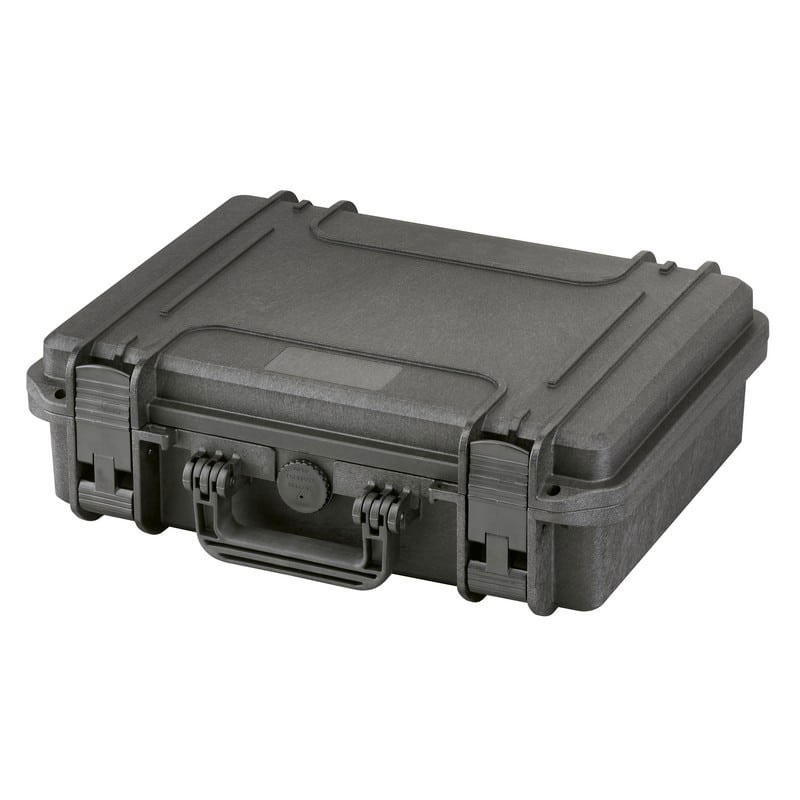

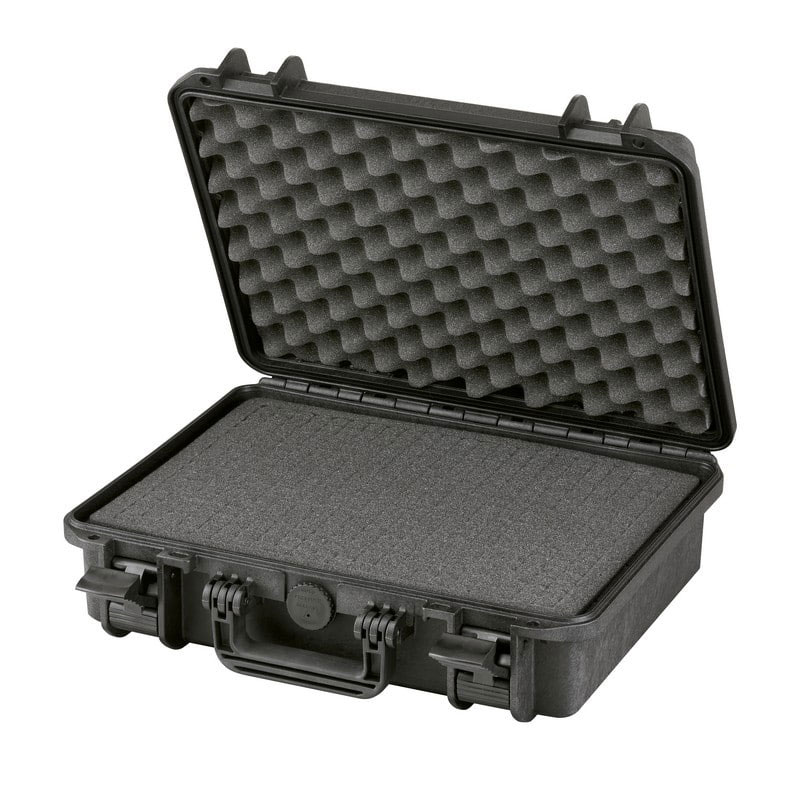

MAX380	MAX380H115	414	345	129	380	270	115	79	36	2,10	•			•
	MAX380H115S	414	345	129	380	270	115	79	36	2,35		•		•
	MAX380H160	414	345	174	380	270	160	124	36	2,46	•			•
	MAX380H160S	414	345	174	380	270	160	124	36	2,76		•		•

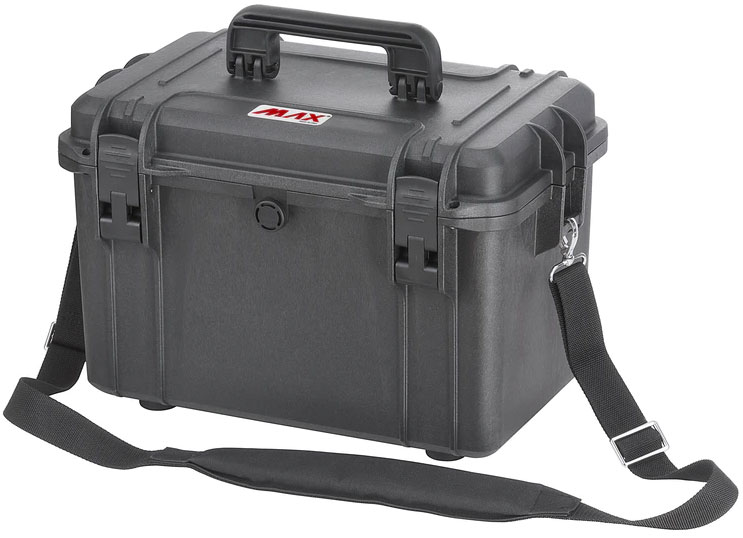

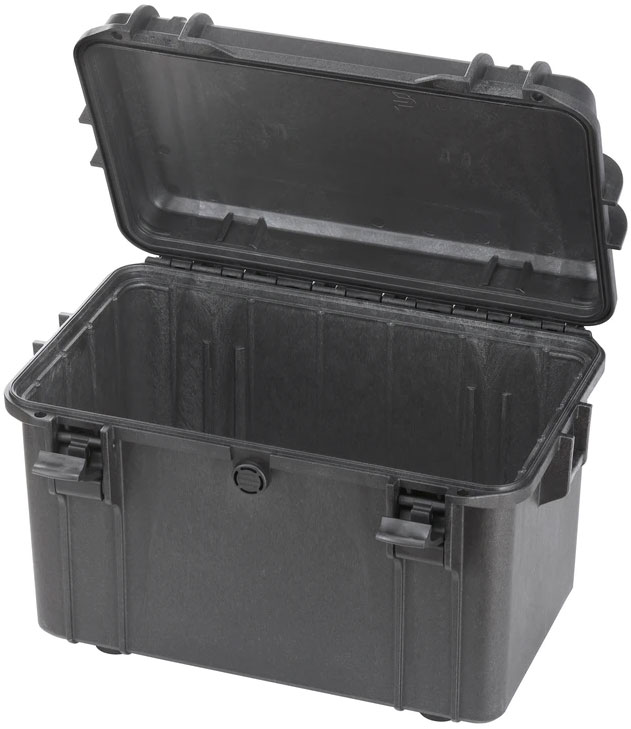

MAX400	MAX400	456	290	318	400	230	260	212	48	2,40	•			•
MAX400	MAX400S	464	290	318	400	230	260	212	48	2,80		•		•
MAX430	MAX430	464	366	176	426	290	159	114	45	2,76	•			•	•	•
MAX430	MAX430S	464	366	176	426	290	159	114	45	3,04		•		•	•	•

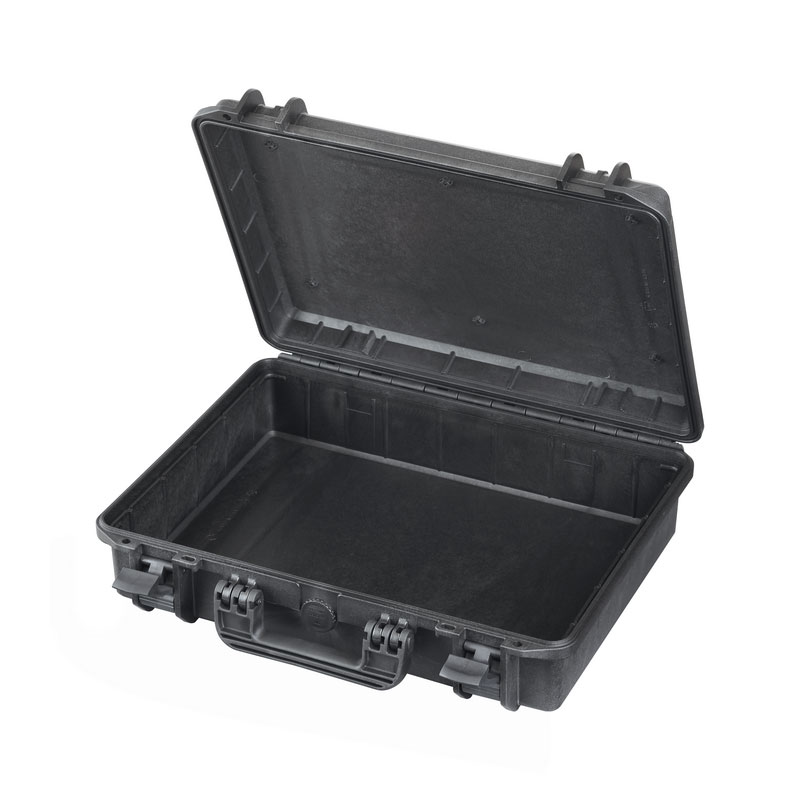

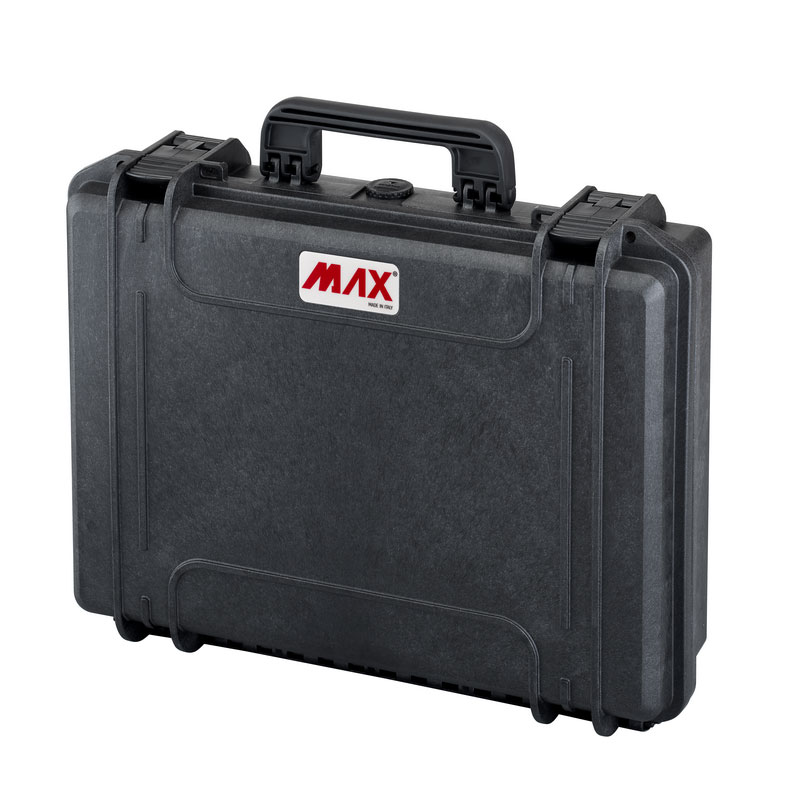

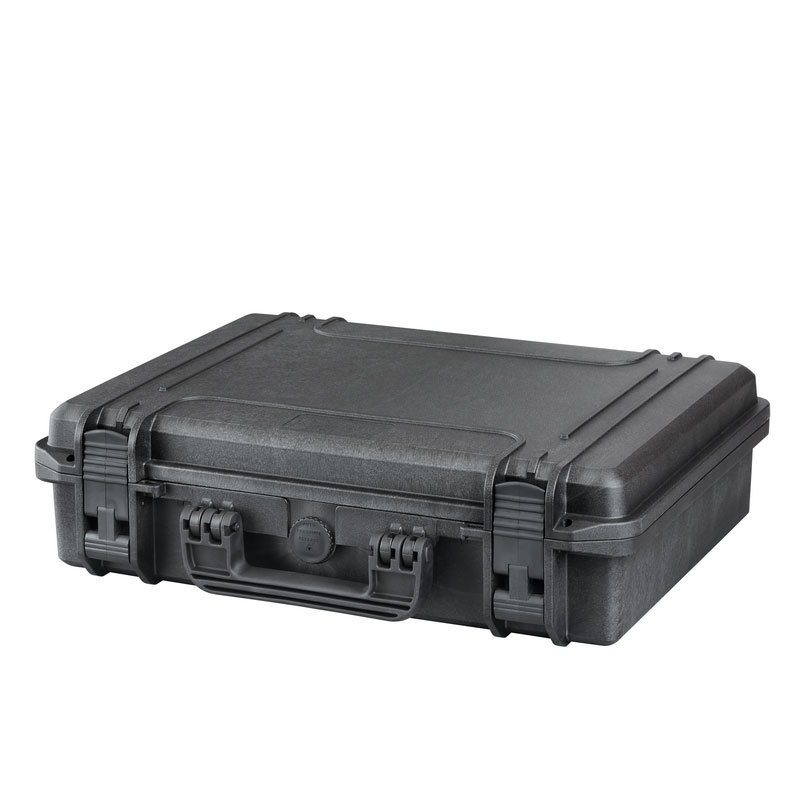

MAX465	MAX465 H125	502	415	141	465	335	125	85	40	2,62	•			•
	MAX465 H125S	502	415	141	465	335	125	85	40	2,92		•		•

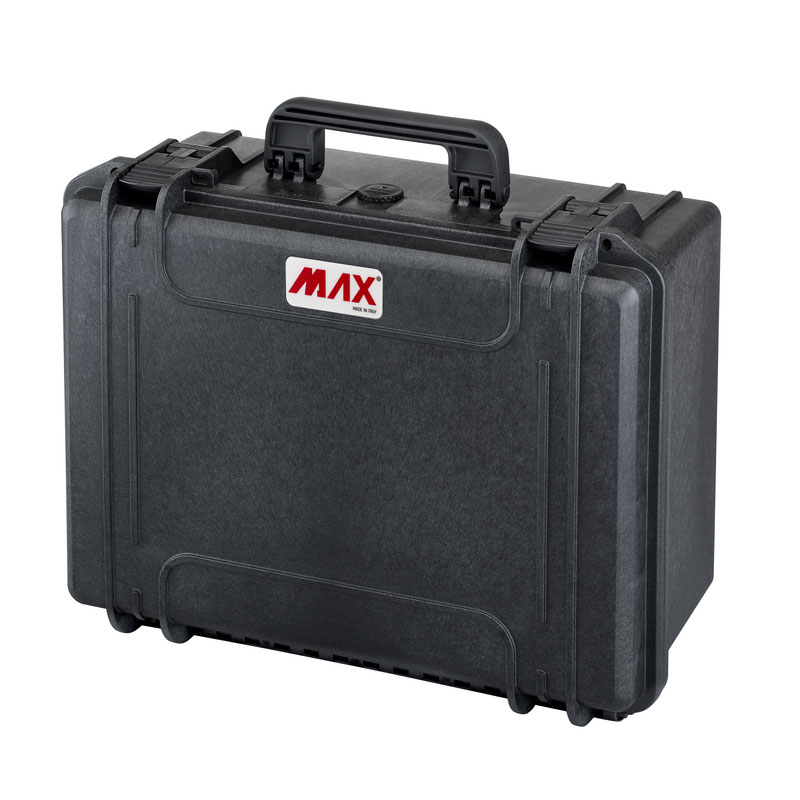

	MAX465 H220	502	415	246	465	335	220	180	40	3,44	•			•
	MAX465 H220S	502	415	246	465	335	220	180	40	3,98		•		•
	MAX465 H220 TR	502	422	267	465	335	220	180	40	4,46	•		•	•
	MAX465 H220S TR	502	422	267	465	335	220	180	40	5,00		•	•	•

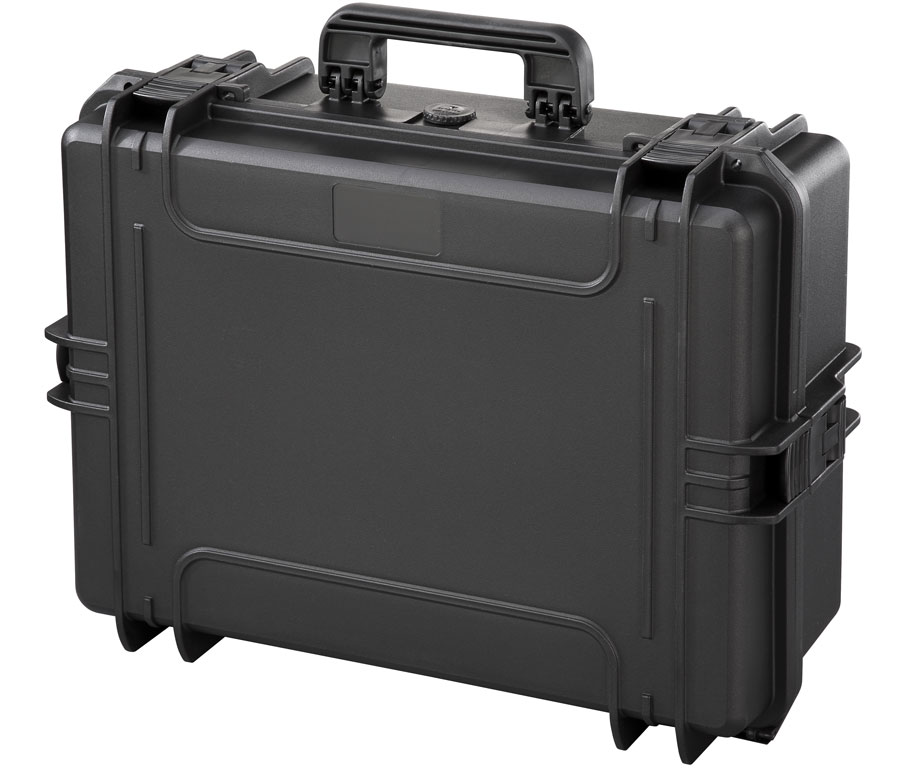

MAX505	MAX505	555	428	211	500	350	194	136	58	3,90	•			•	•	•
	MAX505S	555	428	211	500	350	194	136	58	4,38		•		•	•	•
	MAX505 TR	555	445	258	500	350	194	136	58	5,04	•		•	•	•	•

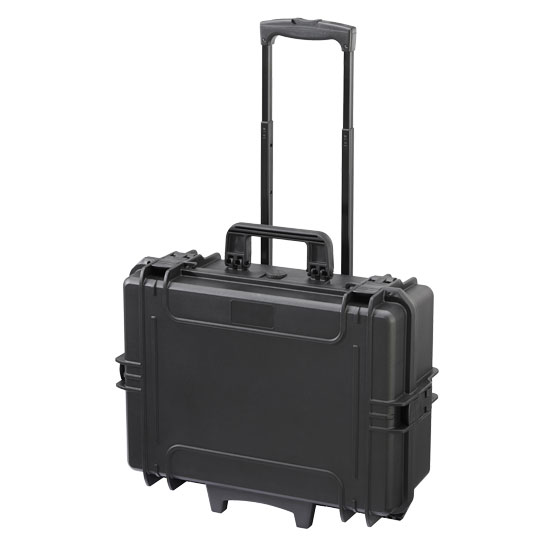

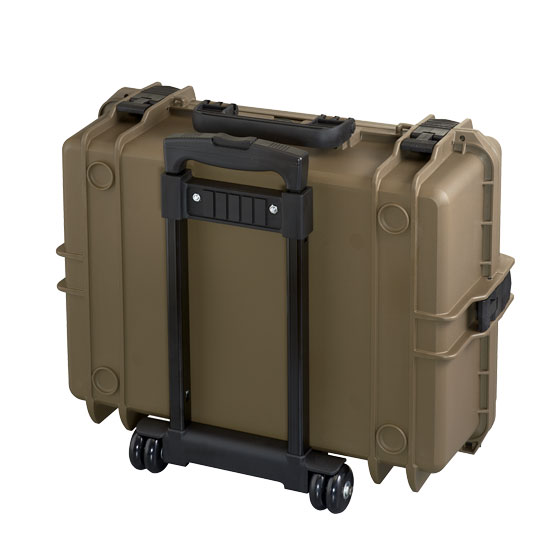

	MAX505S TR	555	445	258	500	350	194	136	58	5,54		•	•	•	•	•

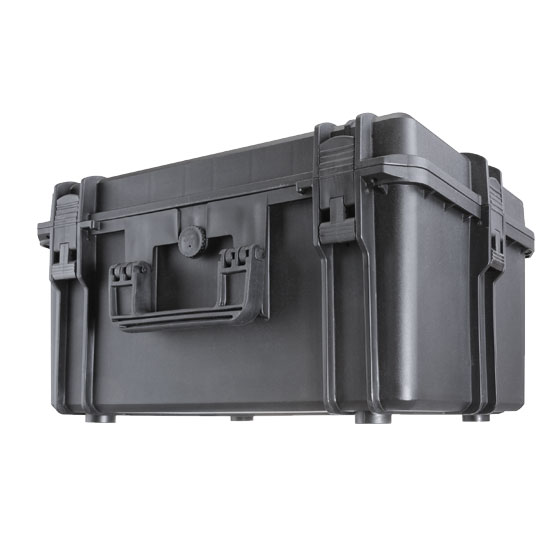

	MAX505 H280	555	428	306	500	350	280	222	58	5,10	•			•
	MAX505 H280S	555	428	306	500	350	280	222	58	6,03		•		•

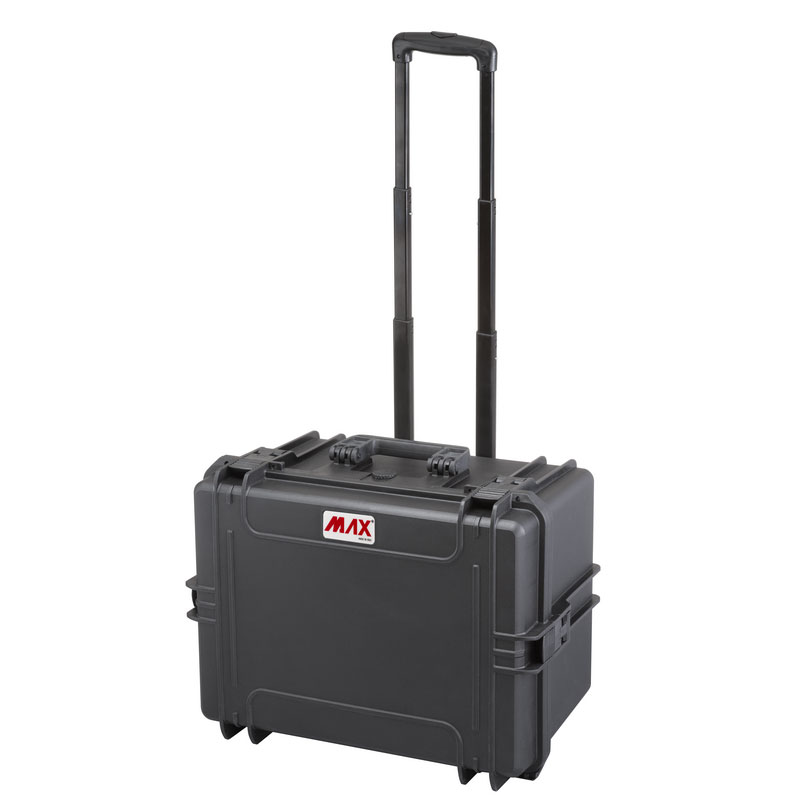

	MAX505 H280 TR	555	437	326	500	350	280	222	58	6,10	•		•	•
	MAX505 H280S TR	555	437	326	500	350	280	222	58	7,03		•	•	•

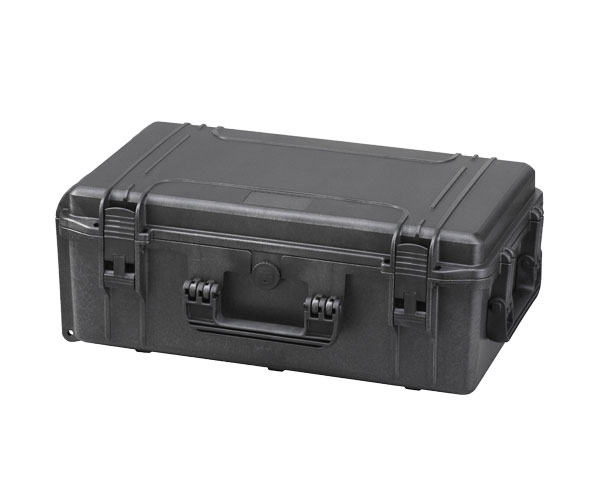

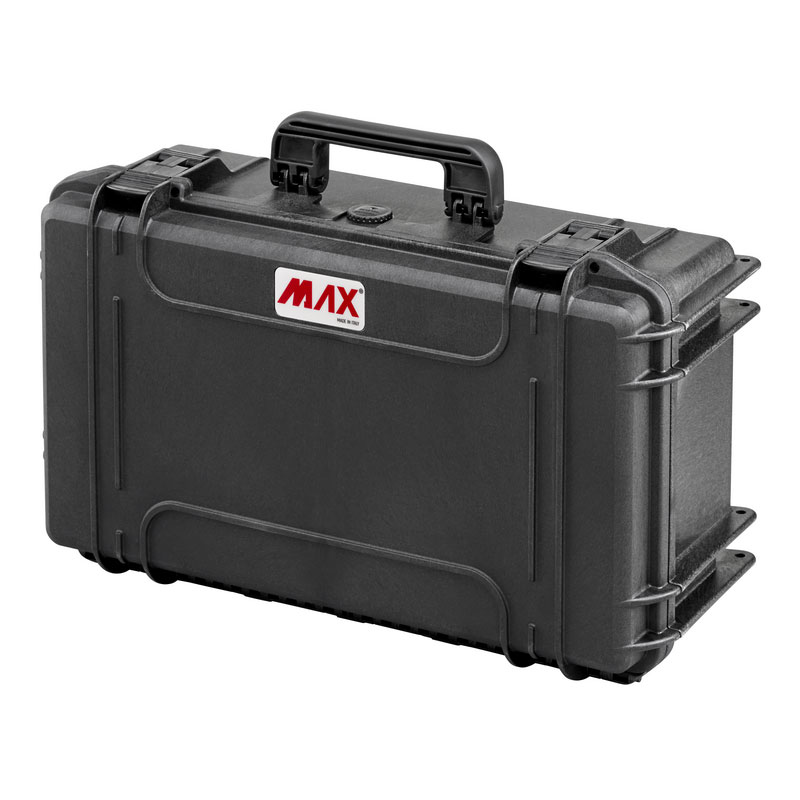

MAX520	MAX520	574	361	225	520	290	200	155	45	3,58	•			•
	MAX520S	574	361	225	520	290	200	155	45	4,02		•		•
	MAX520 TR	585	361	238	520	290	200	155	45	5,14	•		•	•
	MAX520S TR	585	361	238	520	290	200	155	45	5,50		•	•	•

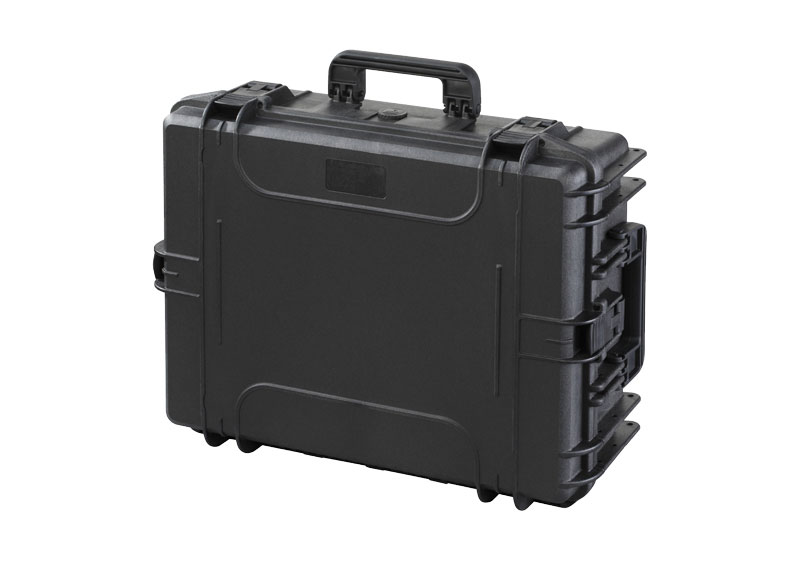

MAX540	MAX540 H190	594	473	215	538	405	190	140	50	4,76	•			•
	MAX540 H190S	594	473	215	538	405	190	140	50	5,40		•		•

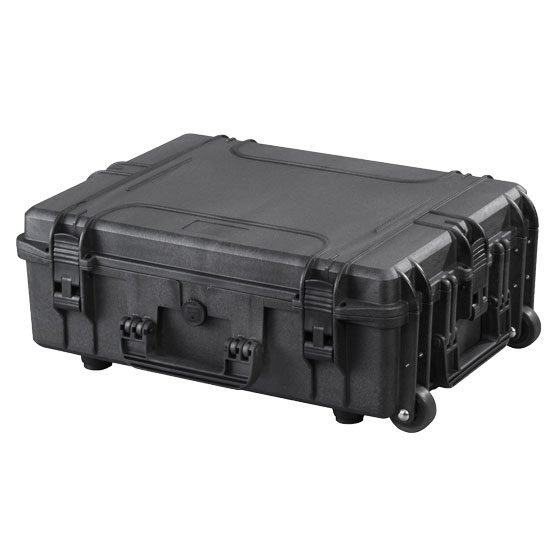

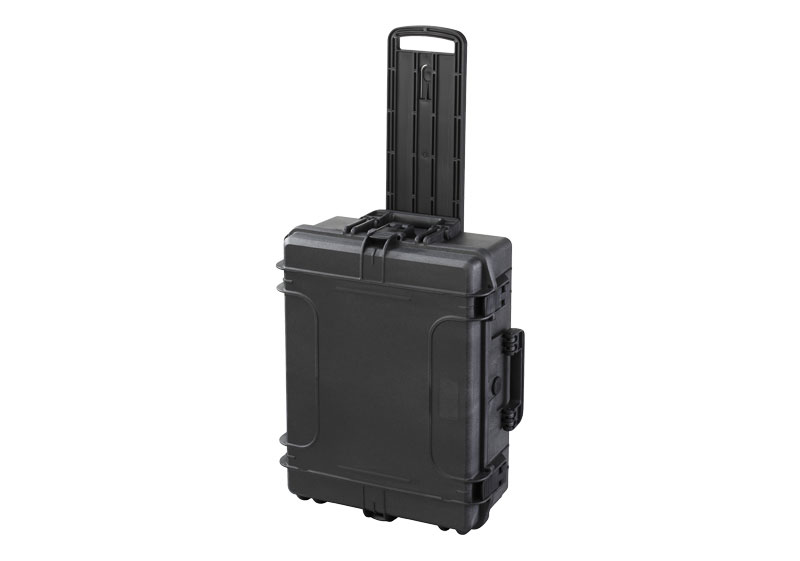

	MAX540 H190 TR	604	473	225	538	405	190	140	50	6,40	•		•	•
	MAX540 H190S TR	604	473	225	538	405	190	140	50	6,94		•	•	•

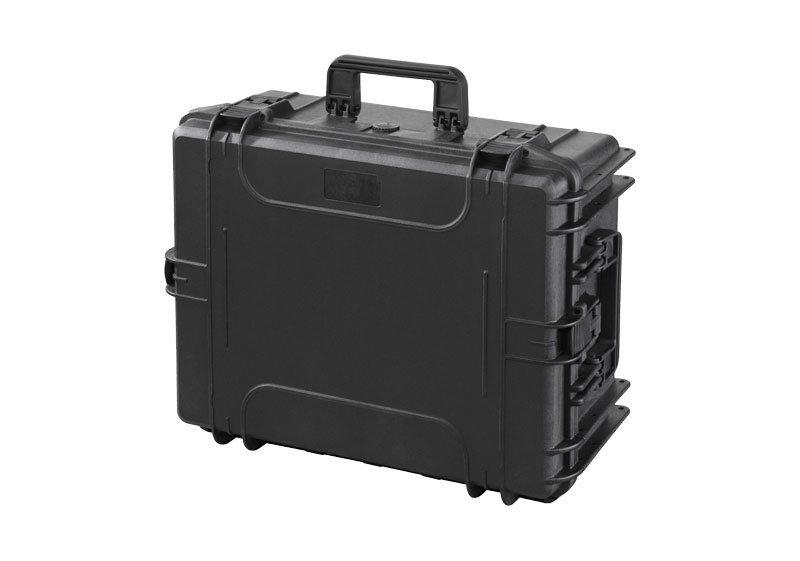

	MAX540 H245	594	473	270	538	405	245	195	50	5,20	•			•

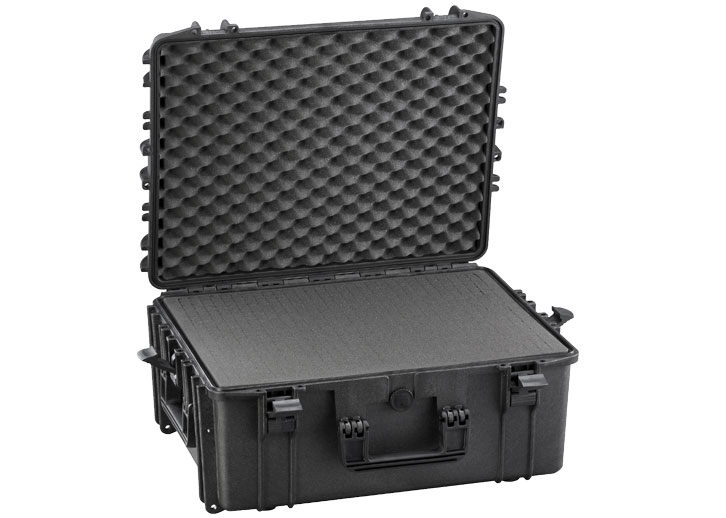

	MAX540 H245S	594	473	270	538	405	245	195	50	6,16		•		•
	MAX540 H245 TR	604	473	283	538	405	245	195	50	6,84	•		•	•
	MAX540 H245S TR	604	473	283	538	405	245	195	50	7,70		•	•	•

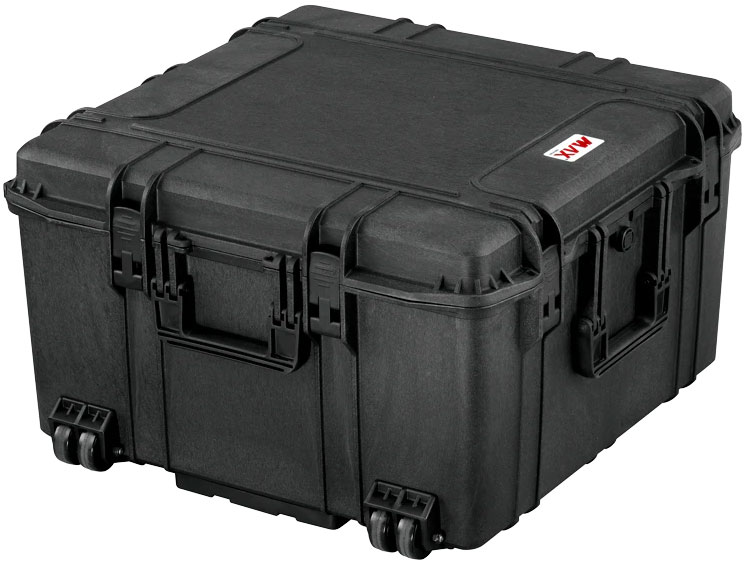

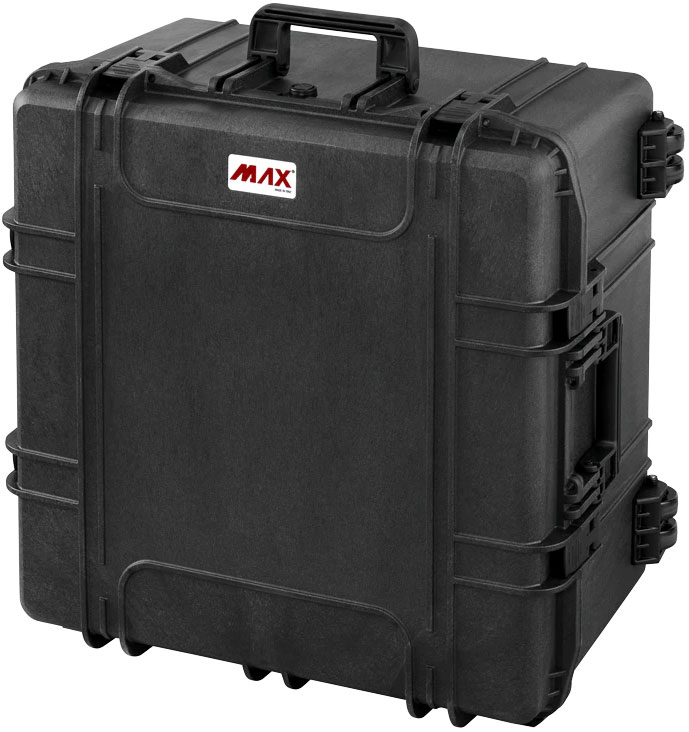

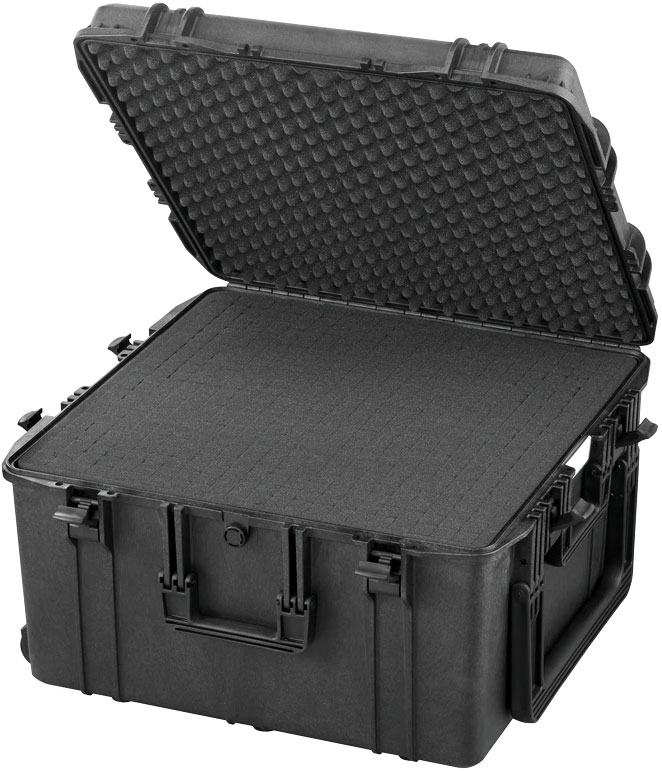

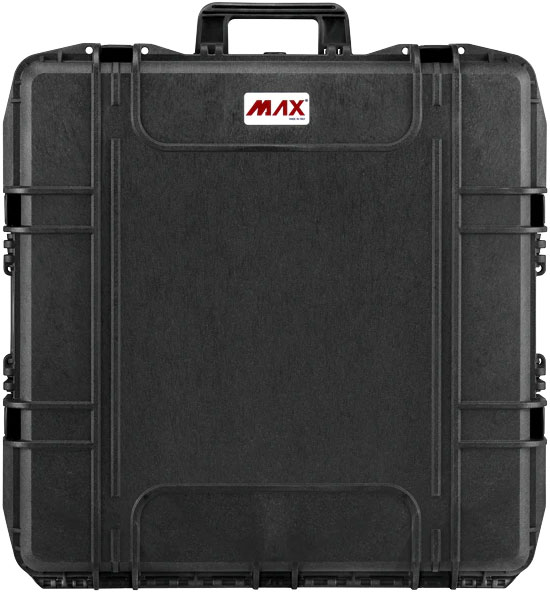

MAX615	MAX615	680	675	393	615	615	360	300	60	10,70	•			•
	MAX615S	680	675	393	615	615	360	300	60	11,60		•		•
	MAX615 TR	680	675	405	615	615	360	300	60	12,30	•		•	•
	MAX615S TR	680	675	405	615	615	360	300	60	13,50		•	•	•
MAX620	MAX620 H250	687	528	276	620	460	250	190	60	6,98	•			•
	MAX620 H250S	687	528	276	620	460	250	190	60	8,14		•		•
	MAX620 H250 TR	687	528	286	620	460	250	190	60	8,50	•		•	•
	MAX620 H250S TR	687	528	286	620	460	250	190	60	9,70		•	•	•
	MAX620 H340	687	528	366	620	460	340	280	60	8,08	•			•
	MAX620 H340S	687	528	366	620	460	340	280	60	9,60		•		•
	MAX620 H340 TR	687	528	376	620	460	340	280	60	9,60	•		•	•
	MAX620 H340S TR	687	528	376	620	460	340	280	60	11,12		•	•	•

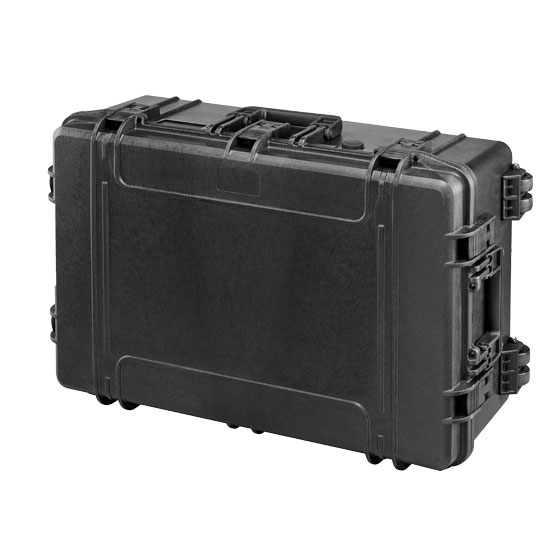

MAX750	MAX750 H280	816	540	306	750	480	280	220	60	10,20	•			•
	MAX750 H280S	816	540	306	750	480	280	220	60	11,80		•		•
	MAX750 H400	816	540	426	750	480	400	340	60	12,10	•			•
	MAX750 H400S	816	540	426	750	480	400	340	60	13,70		•		•

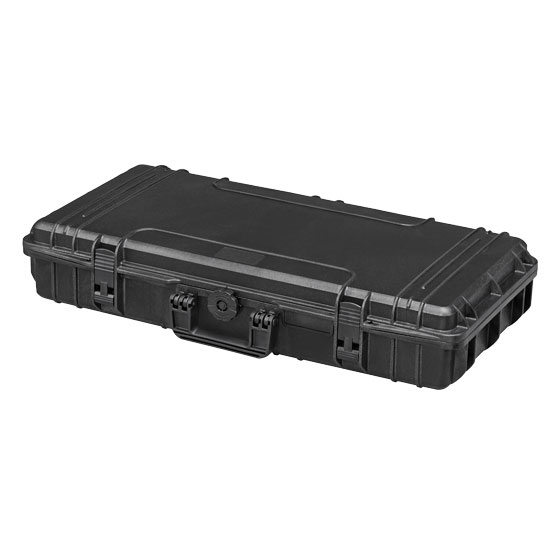

MAX800	MAX800	850	440	158	800	370	140	95	45	6,20	•			•
MAX800	MAX800S	850	440	158	800	370	140	95	45	7,06		•		•

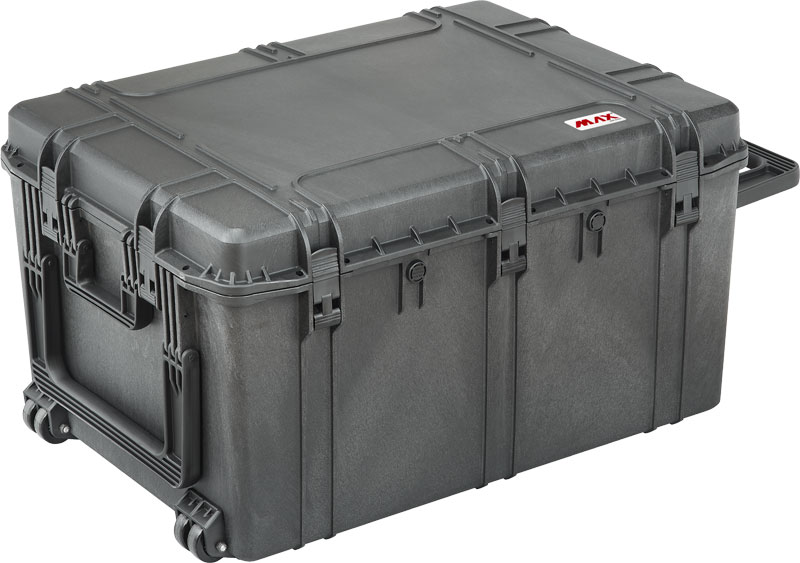

MAX820	MAX820	880	660	483	820	600	450	380	70	15,40	•			•
MAX820	MAX820S	880	660	483	820	600	450	380	70	16,06		•		•

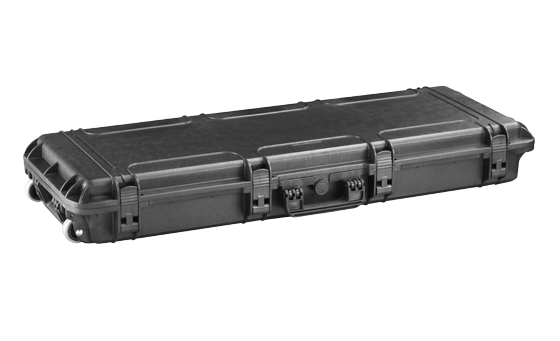

MAX1100	MAX1100	1177	450	158	1100	370	140	95	45	7,92	•			•
	MAX1100S	1177	450	158	1100	370	140	95	45	8,72		•		•

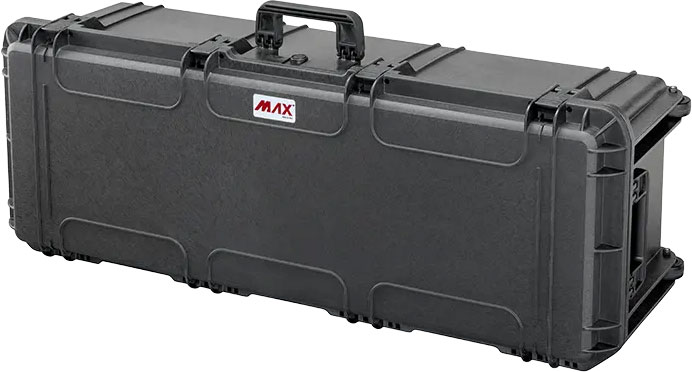

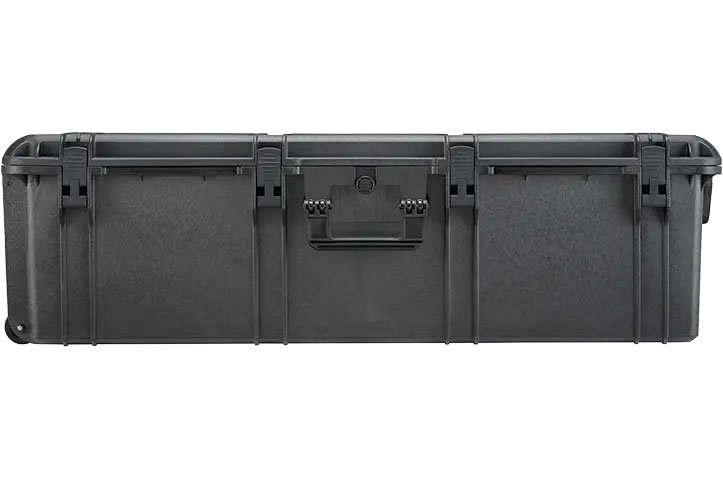

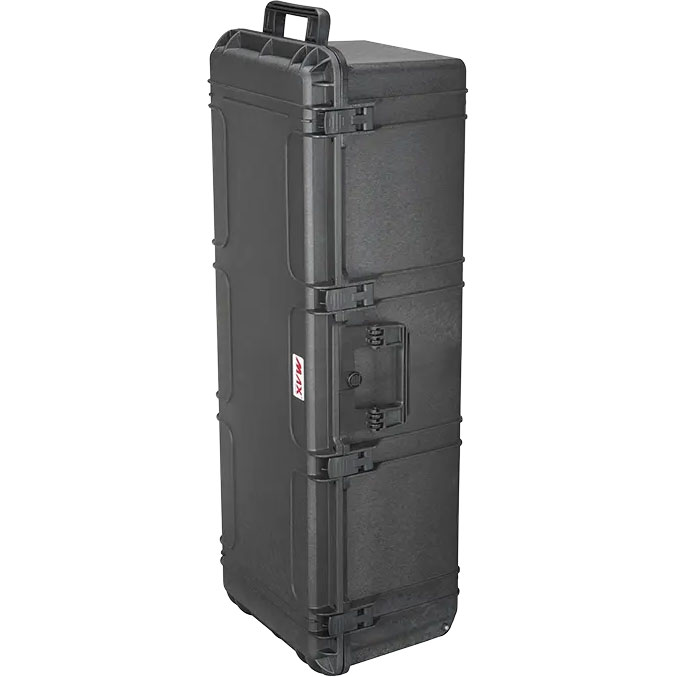

	MAX1100H330	1177	450	348	1100	370	330	285	45	11,00	•			•

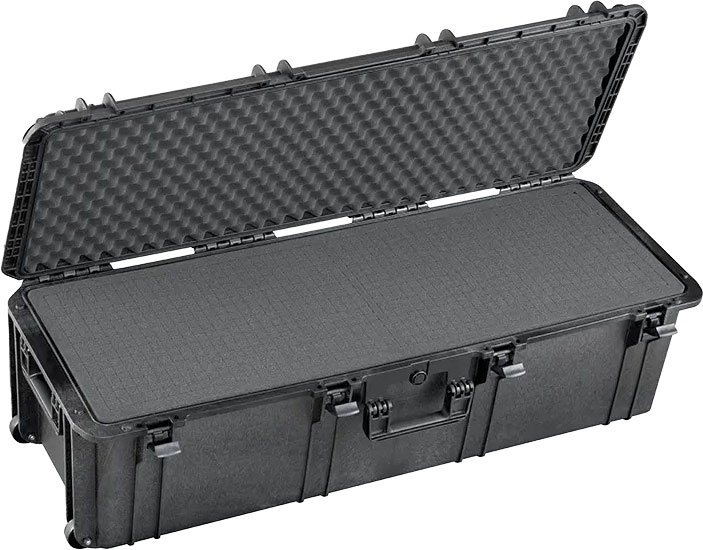

	MAX1100H330S	1177	450	348	1100	370	330	285	45	13,50		•		•

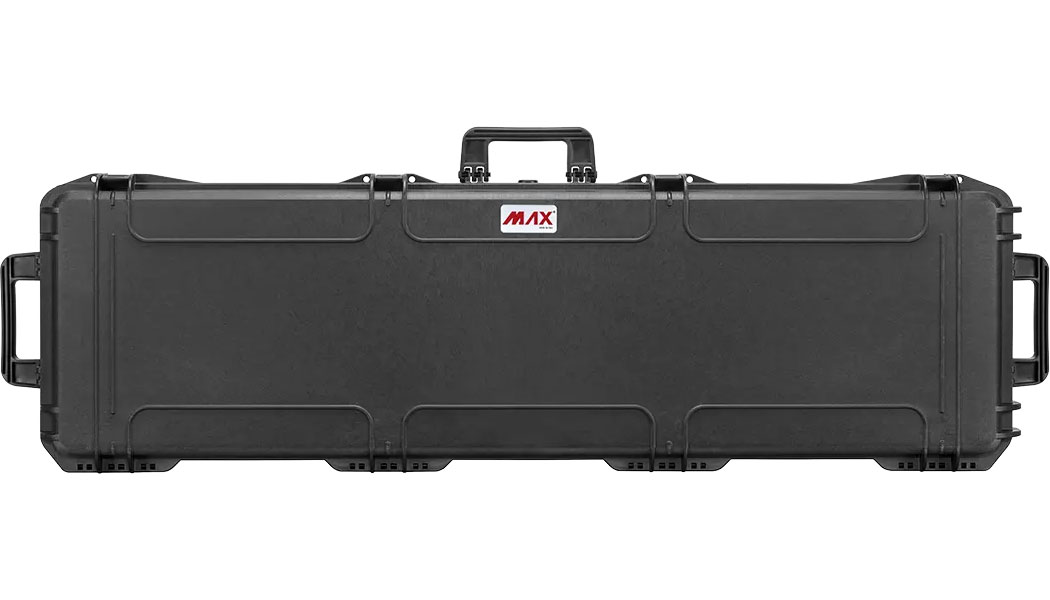

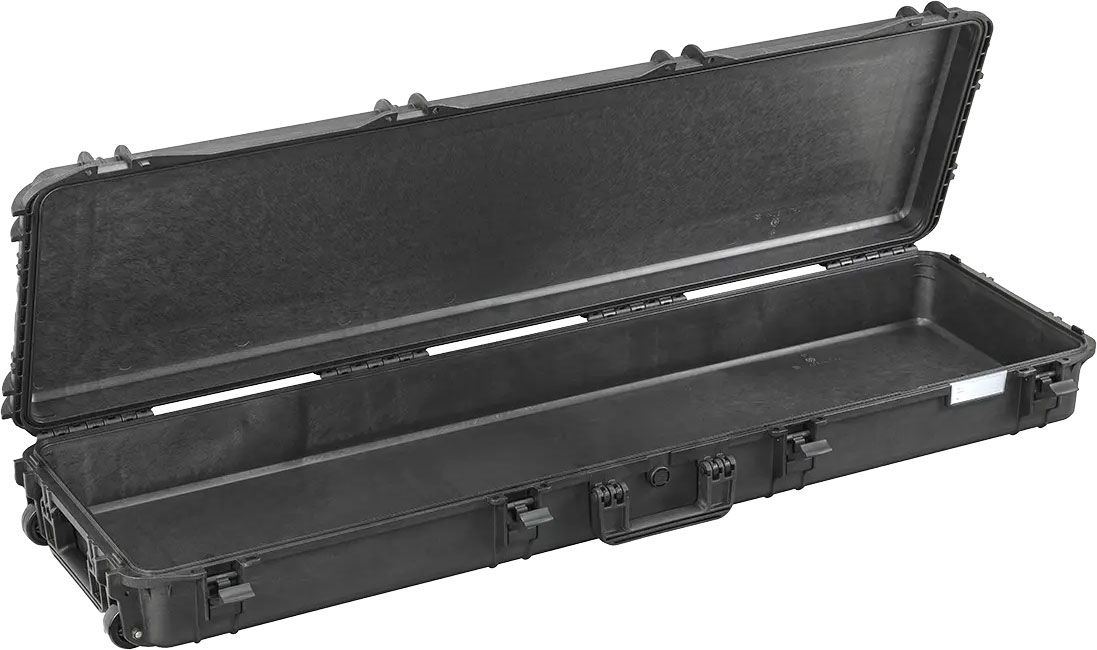

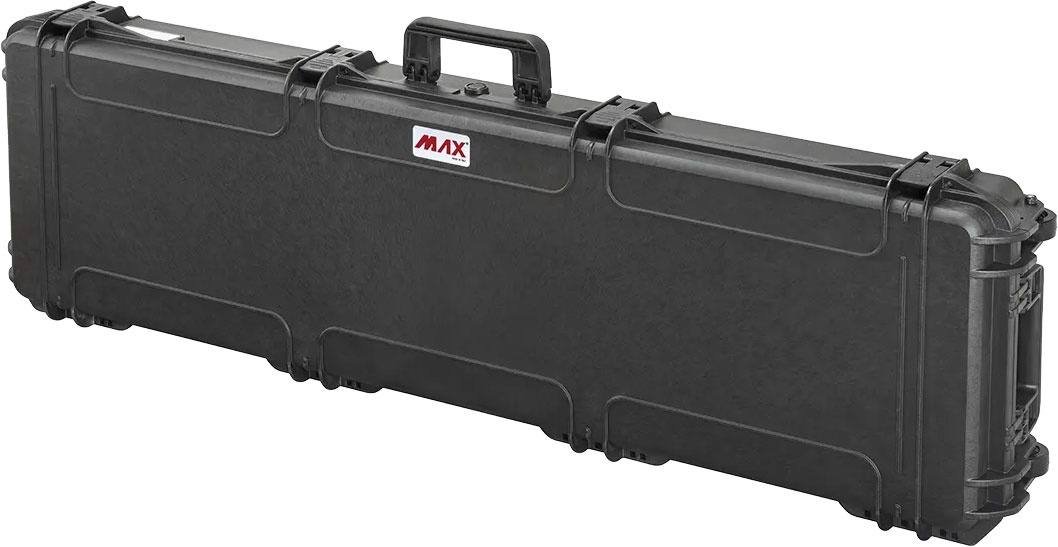

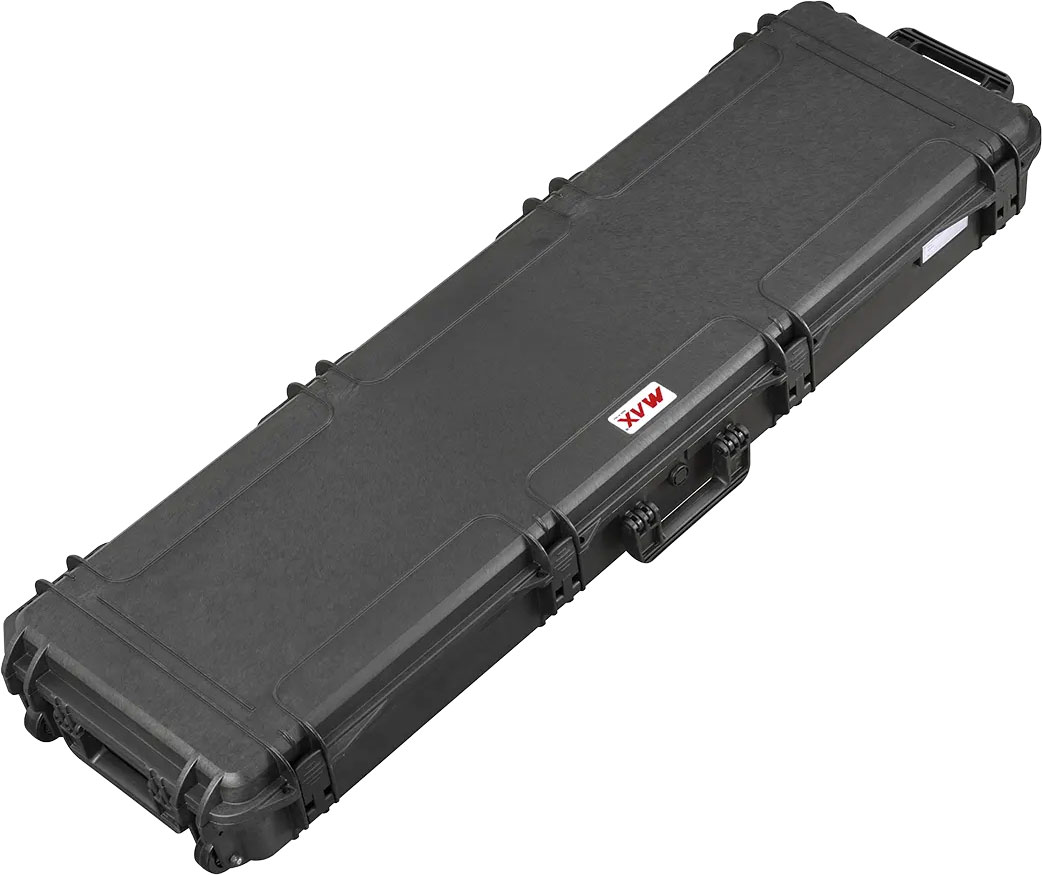

MAX1350	MAX1350	1420	440	168	1350	370	150	105	45	10,00	•			•

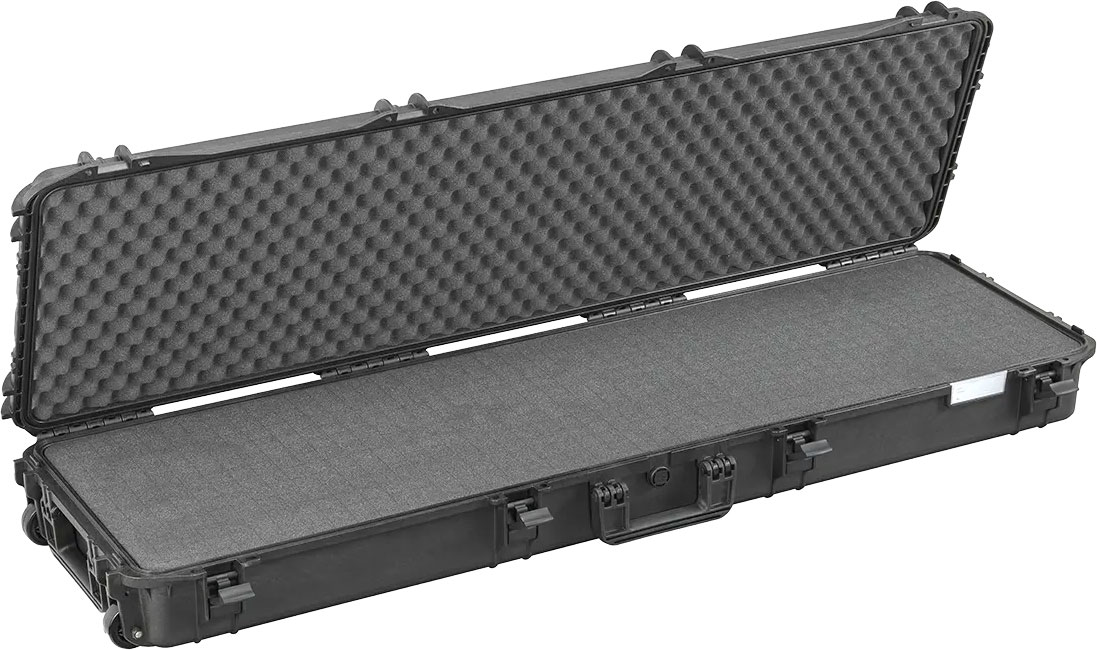

MAX1350	MAX1350S	1420	440	168	1350	370	150	105	45	11,00		•		•

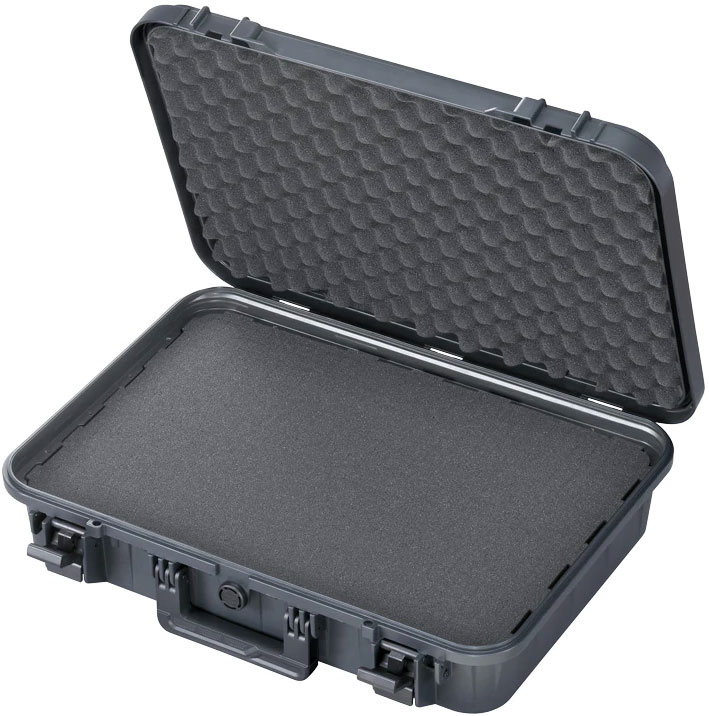

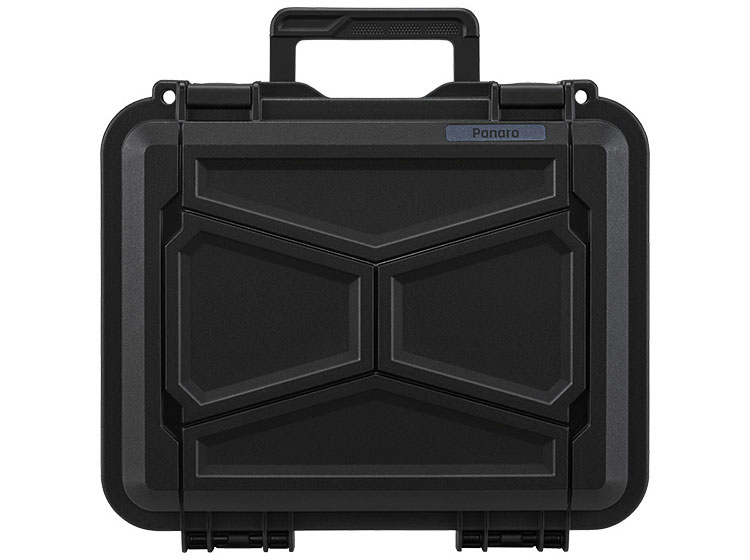

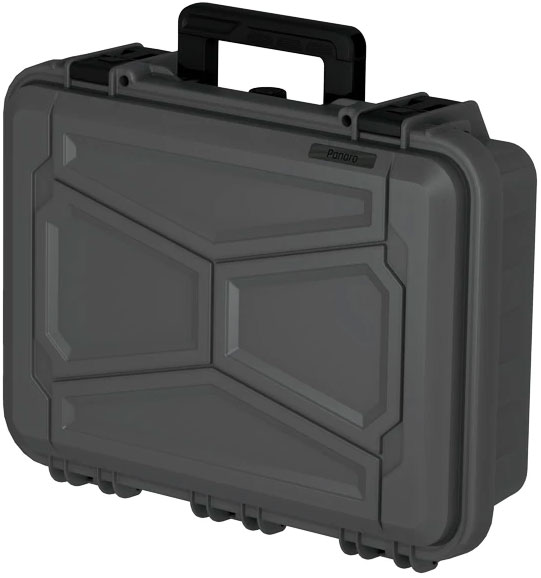

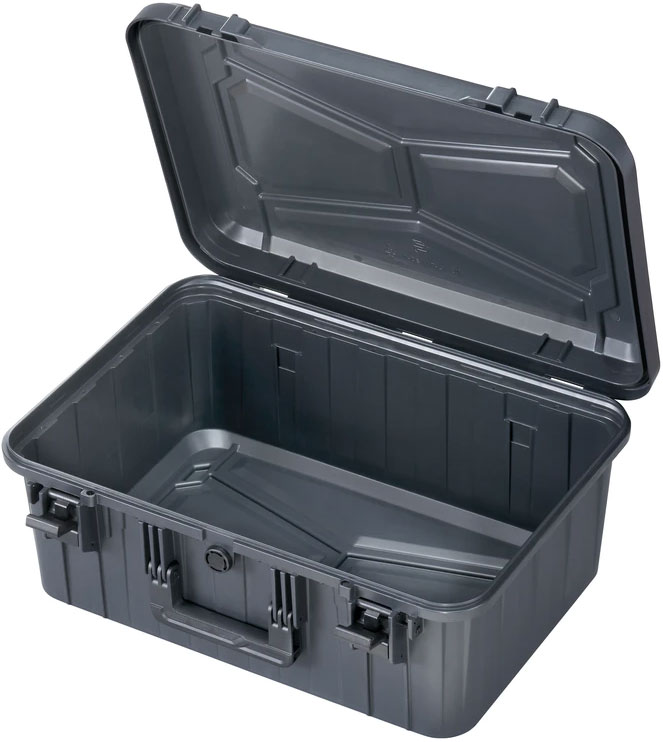

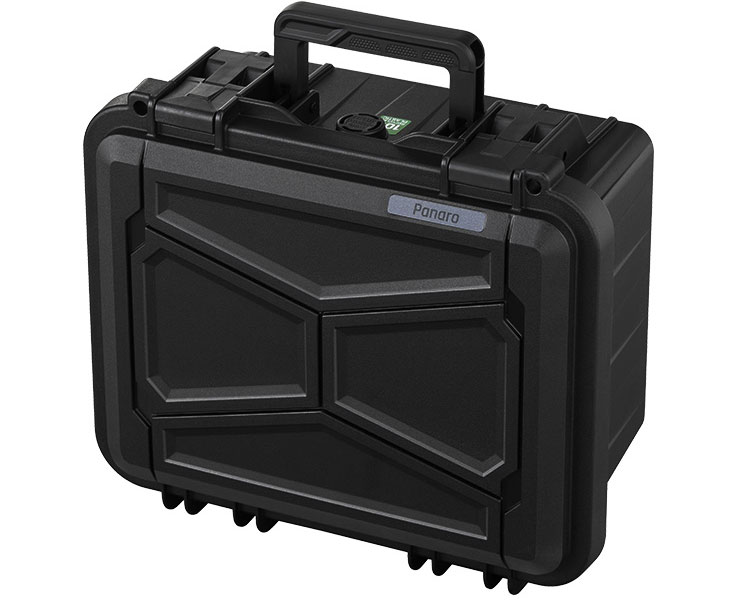

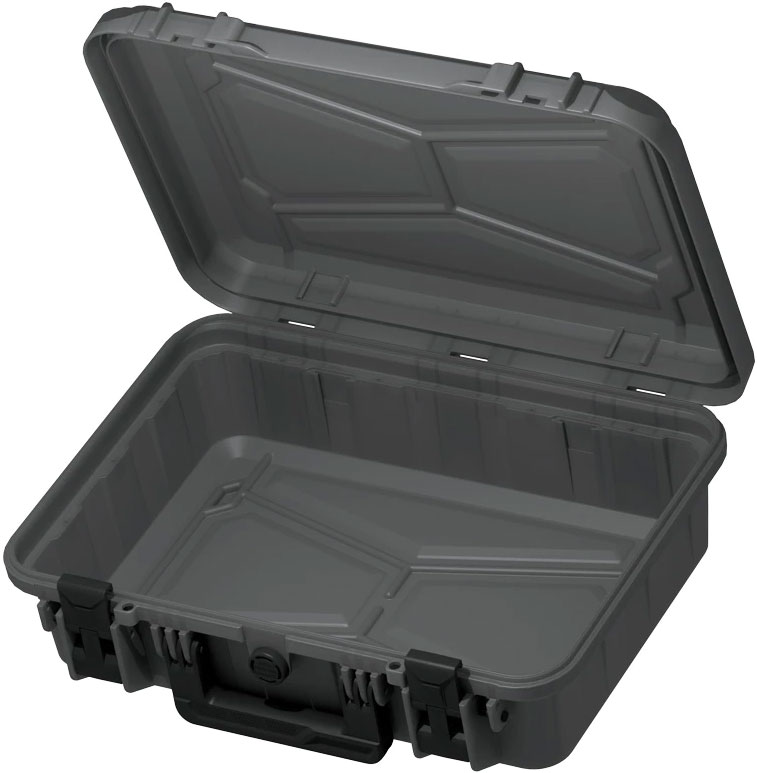

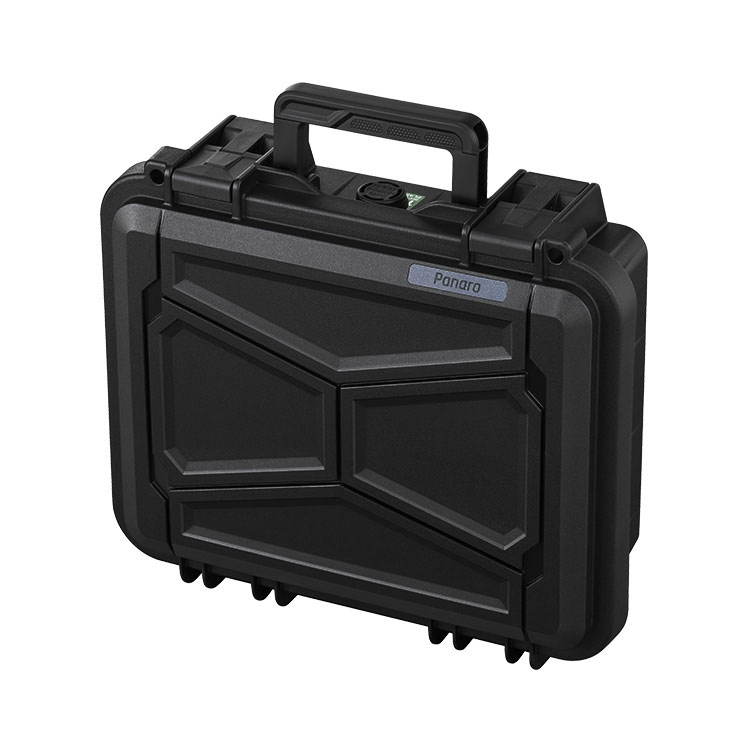

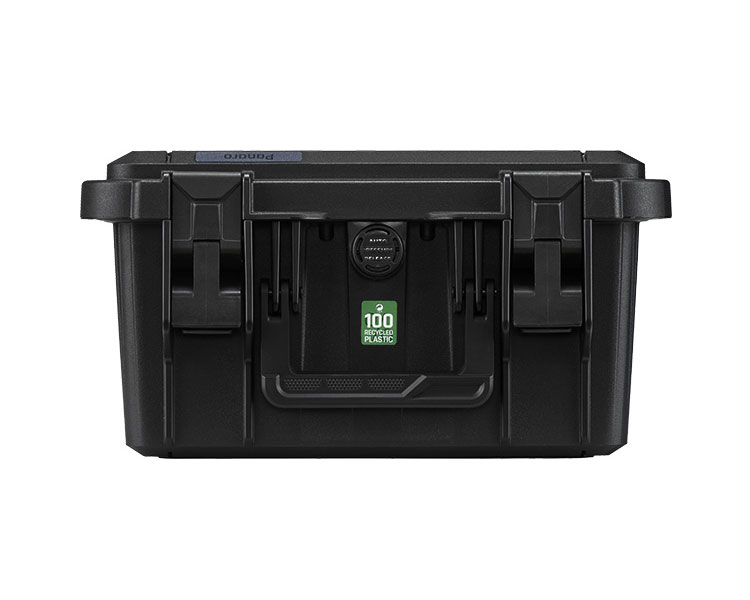

TECTRA ECO FRIENDLY*

model	version	dimensions [mm]								weight [kg]	configuration			colours
		external			internal						pusta	cubed foam	trolley	black	orange	sahara
		A	B	H	a	b	h	h1	h2		pusta	cubed foam	trolley	black	orange	sahara

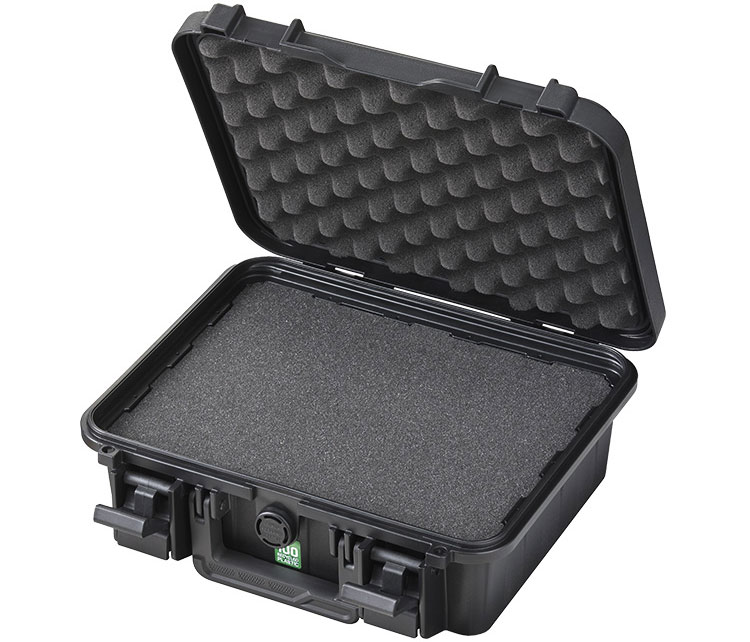

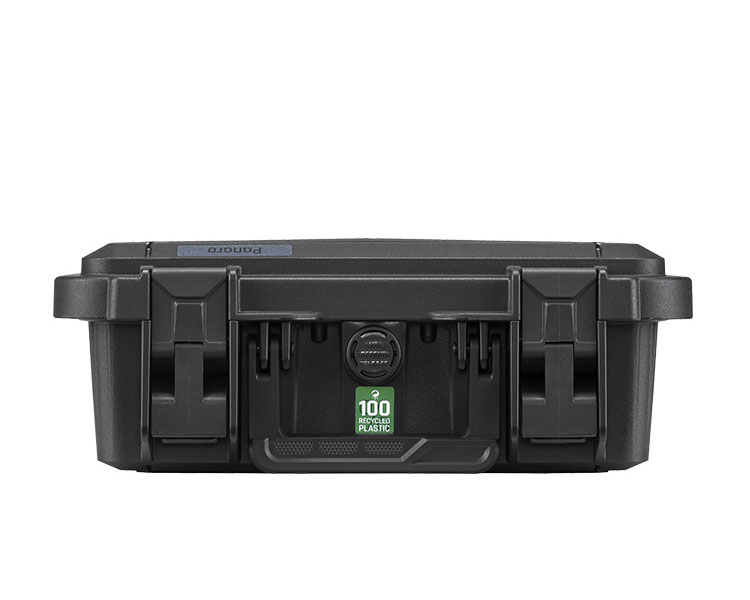

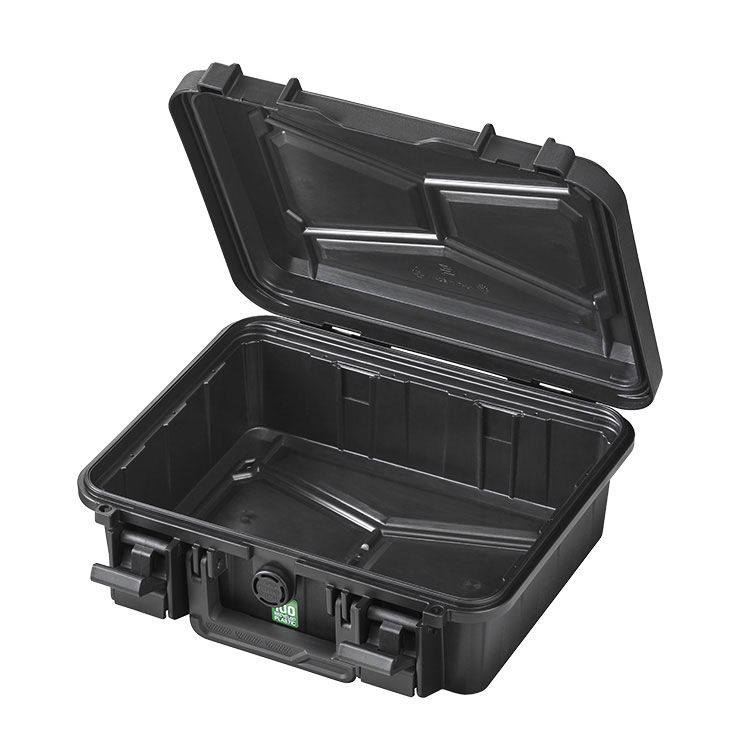

EF030	EF030	335	295	122	290	220	105	83	22	1,30	•			•
	EF030S	335	295	122	290	220	105	83	22	1,40		•		•
	EF030D	335	295	177	290	220	160	138	22	1,45	•			•
	EF030DS	335	295	177	290	220	160	138	22	1,55		•		•

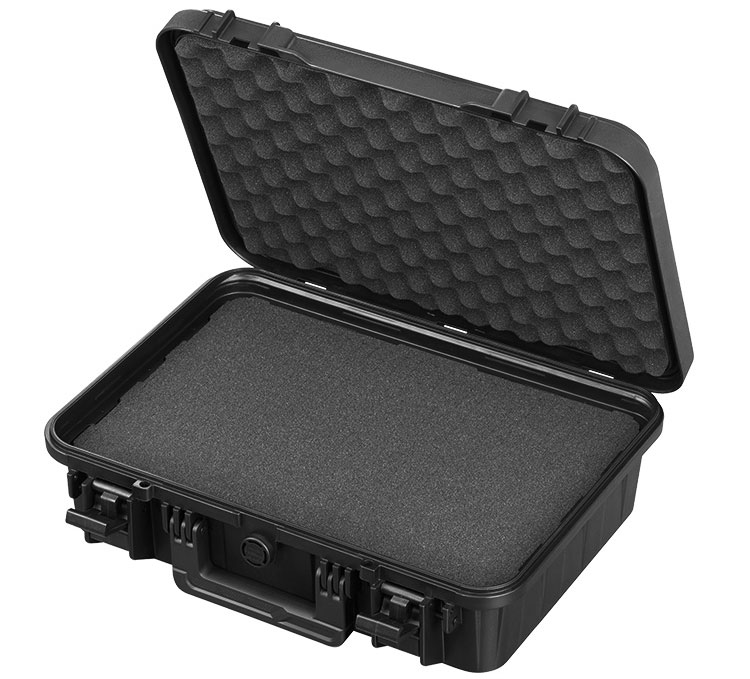

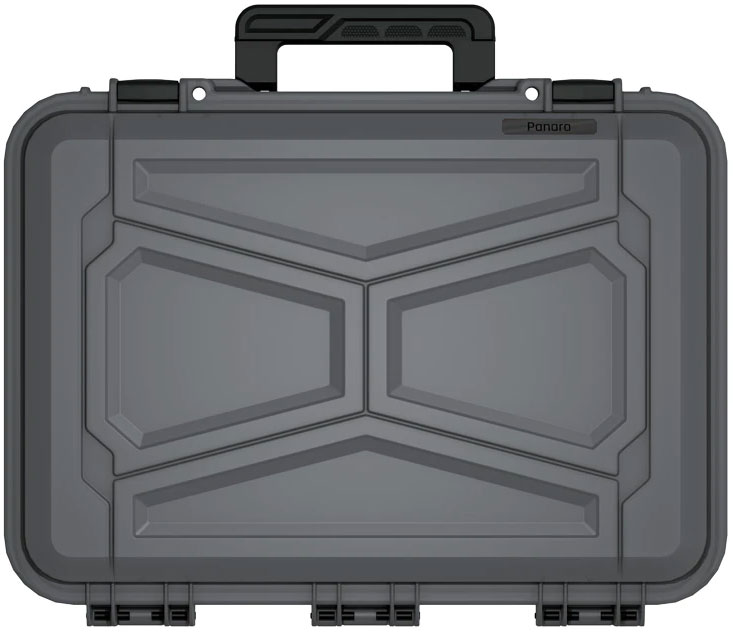

EF060	EF060	465	355	145	415	280	125	92	33	2,20	•			•
	EF060S	465	355	145	415	280	125	92	33	2,40		•		•

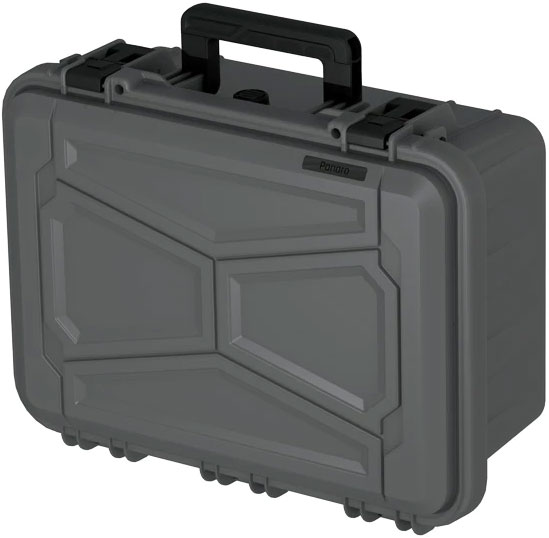

	EF060D	465	355	210	415	280	190	157	33	2,50	•			•
	EF060DS	465	355	210	415	280	190	157	33	2,70		•		•

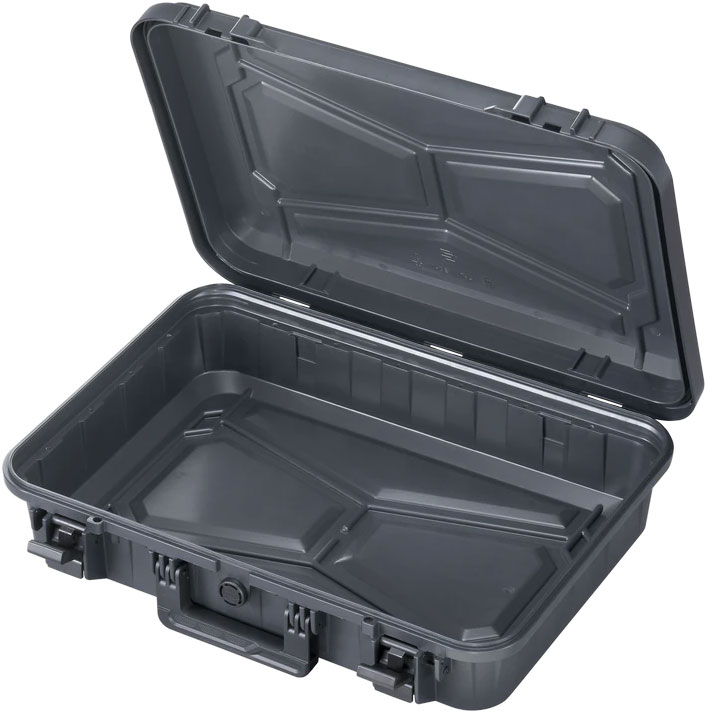

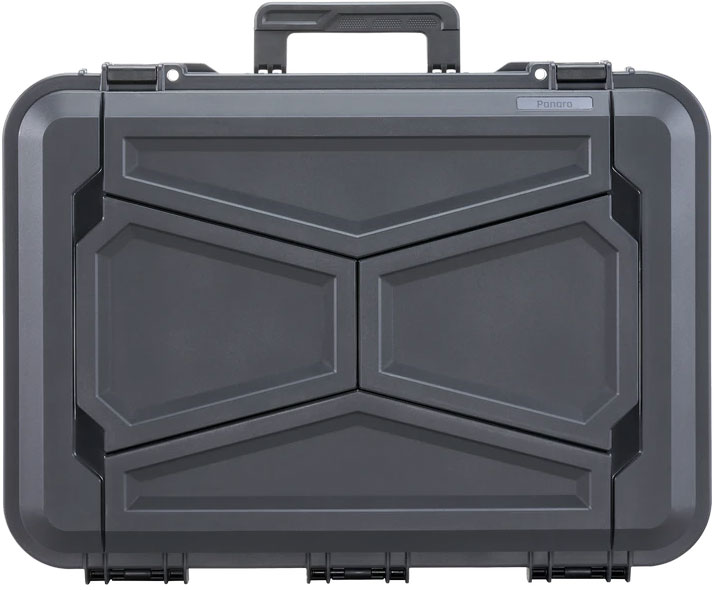

EF090	EF090	572	425	144	520	350	125	89	36	2,50	•			•
	EF090S	572	425	144	520	350	125	89	36	2,82		•		•

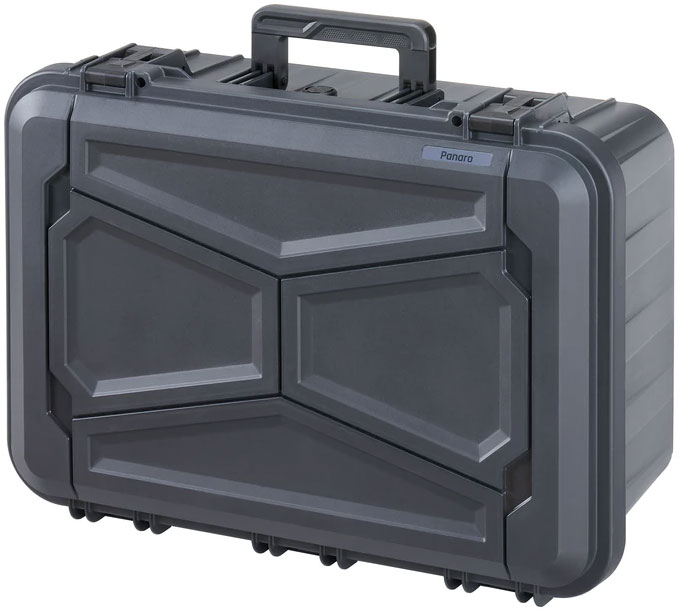

	EF090D	572	425	239	520	350	220	184	36	3,10	•			•
	EF090DS	572	425	239	520	350	220	184	36	3,42		•		•

* made of 100% recycled plastics
